Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

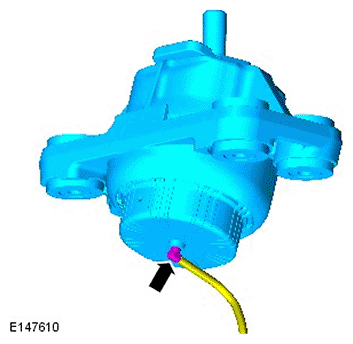

  1. G11695619

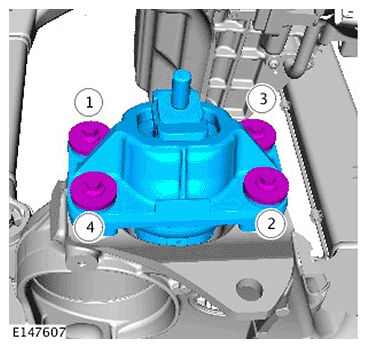

  2. Fig 1: Engine Mount Tightening Sequence
    G11695624Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque Specification: 32 Nm

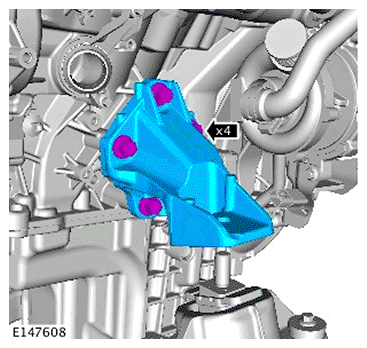

  3. G11695617

    Torque Specification: 115 Nm

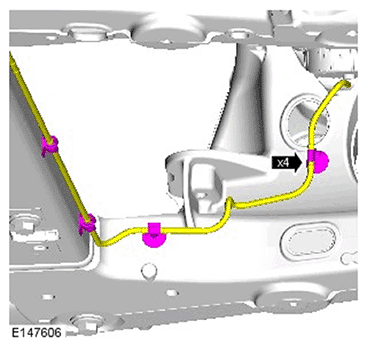

  4. G11695614
  5. Refer to: AIR CONDITIONING COMPRESSOR - TDV6 3.0L DIESEL
  6. Connect the battery ground cable.

    Refer to: SPECIFICATIONS
