Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Make sure that the mating faces are clean and free of foreign material.
- Clean and inspect the cylinder head and cylinder block.
- Check the cylinder head face for distortion, across the center and from corner to corner. Refer to: CYLINDER HEAD DISTORTION
  Refer to: CYLINDER HEAD GASKET SELECTION - TDV6 3.0L DIESEL

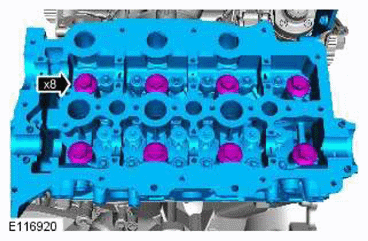

CAUTION: Only tighten the bolts finger-tight at this stage.

NOTE: Install a new gasket.

Renew Part: Cylinder head gasket Quantity: 1 .

Renew Part: Cylinder head bolts Quantity: 1 .
NOTE: Tighten the bolts in the indicated sequence.

Fig 1: Cylinder Head Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Torque Specification: 80 Nm
NOTE: Tighten the bolts in the indicated sequence.

Fig 2: Cylinder Head Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Torque Specification: 180°
CAUTION: Install the new seals.
Renew Part: Water outlet connection O-ring seals Quantity: 1 .

Torque Specification: 10 Nm

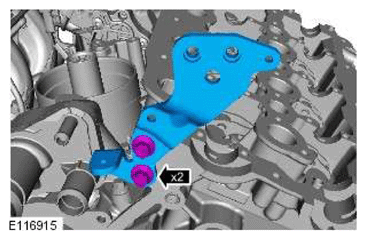

Torque Specification: 10 Nm
Torque Specification: 24 Nm

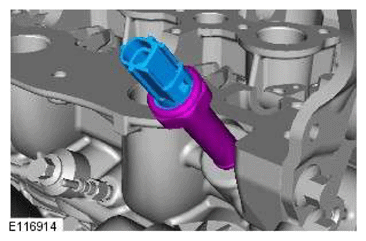

Torque Specification: 14 Nm
Refer to: LEFT EXHAUST MANIFOLD
Refer to: GLOW PLUGS
Refer to: LEFT CAMSHAFT
Refer to: SPECIFICATIONS
