Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
  1. Refer to: SPECIFICATIONS
  2. Refer to: REAR END ACCESSORY DRIVE
  3. Refer to: TIMING COVER
  4. G11601763

    Install the special tool.

    Special Tool(s): JLR-303-1523

  5. G11601764

    Install the special tool.

    Special Tool(s): JLR-303-1523

  6. G11601765

    Using the special tool, remove the rear camshaft pulley retaining bolt.

    Special Tool(s): 303-1145/2

  7. Remove the special tools.

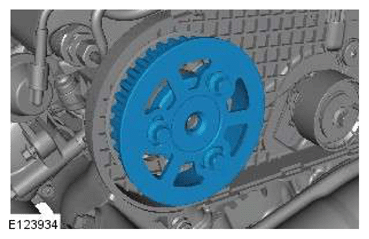

  8. G11601766
  9. G11601767
  10. G11601768
  11. G11601769

    Install the special tool.

    Special Tool(s): 303-1124

  12. G11601770
  13. G11601771

    Remove the special tool.

  14. G11601772
  15. G11601773
    • Reposition the secondary timing chain tensioner.
    • Retain the secondary timing chain tensioner plunger.
  16. G11601774

    Remove the camshaft bearing caps evenly.

  17. G11601775
  18. CAUTION: Discard the seals.
    G11601776
  19. G11601777
  20. G11601778
  21. G11601825

    Remove the secondary timing chain from the camshafts.
