Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

Install the secondary timing chain onto the camshafts.
Install the secondary timing chain tensioner assembly.
CAUTION: Make sure that the dots on the camshafts are aligned at the 12 o'clock position. Failure to follow this instruction may result in damage to the engine.

NOTE: Lubricate the camshafts and the camshaft bearing caps with oil meeting Jaguar specification prior to installation.

Install the camshafts.
NOTE: Install new seals.

Renew Part: Camshaft seal Quantity: 1 .
Torque Specification: 10 Nm
- Apply Loctite 518 sealant to the exhaust camshaft seal bearing caps.
- Apply Loctite 518 sealant, 2 mm wide, to the LH rear and RH front camshaft bearing caps.
- Apply Loctite 518 sealant, 7 mm diameter, to the LH front and RH rear camshaft bearing caps.
NOTE: Tighten the bolts in the indicated sequence.

Fig 1: Camshaft Bearing Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the camshaft bearing caps in their original positions.
- Stage 1: Bolts 1 to 14, 1 Nm.
- Stage 2: Bolts 1 to 14, 5 Nm.
- Stage 3: Bolts 1 to 14, 10 Nm.
- Stage 4: Bolts 15 to 18, 1 Nm.
- Stage 5: Bolts 15 to 18, 5 Nm.
- Stage 6: Bolts 15 to 18, 10 Nm.
Remove the secondary timing chain tensioner retaining pin.
Install the special tool.
Torque Specifications:

Stage 1: 80 Nm

Stage 2: 80°
Remove the special tool.

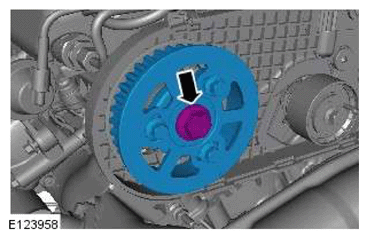

CAUTION: Only tighten the bolt finger-tight at this stage.
Torque Specification: 10 Nm
CAUTION: Only tighten the bolt finger-tight at this stage.

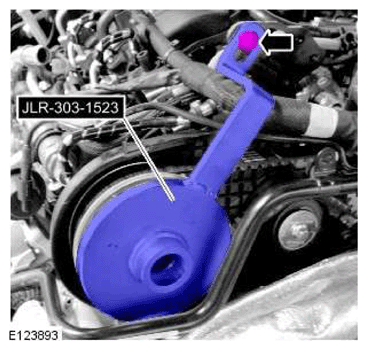

Install the special tool.

Special Tool(s): JLR-303-1523

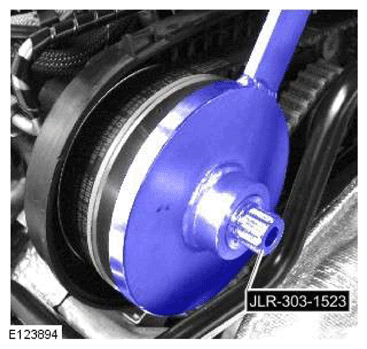

Install the special tool.

Special Tool(s): JLR-303-1523
CAUTION: Make sure the torque wrench setting procedure is followed correctly. Failure to follow this instruction may result in damage to the vehicle.

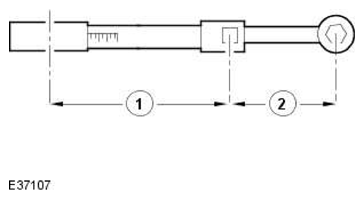

Calculate the setting for the torque wrench.
CAUTION: Make sure the torque wrench setting procedure is followed correctly. Failure to follow this instruction may result in damage to the vehicle.

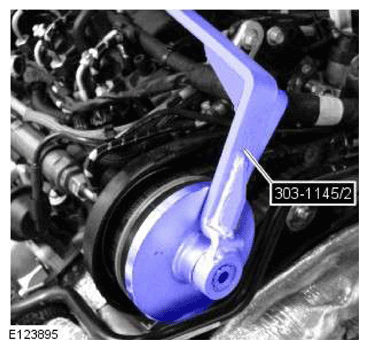

Using the special tool, install the camshaft rear pulley retaining bolt.

Special Tool(s): 303-1145/2
Remove the special tools.
Refer to: TIMING BELT
Refer to: REAR END ACCESSORY DRIVE
Refer to: SPECIFICATIONS
