Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Make sure that new bolts are installed.

NOTE: Make sure that all the component mating faces are clean.

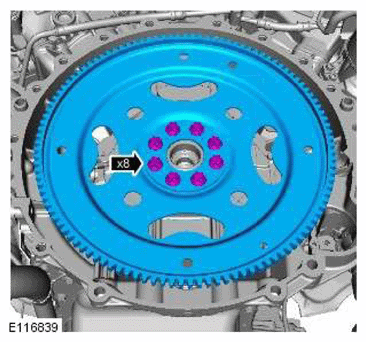

- Prevent the flexplate from rotating.
  Renew Part: Flywheel bolts Quantity: 1 .
CAUTION: Tighten the bolts evenly in the stages shown.

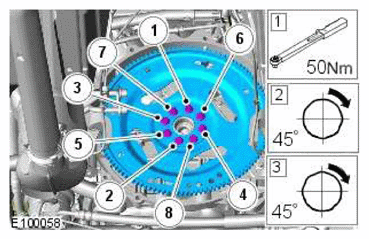

Fig 1: Flexplate Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Stage 1: Tighten to 50 Nm.
- Stage 2: Tighten to 45 degrees.
- Stage 3: Tighten to 45 degrees.
- Remove the special tool.

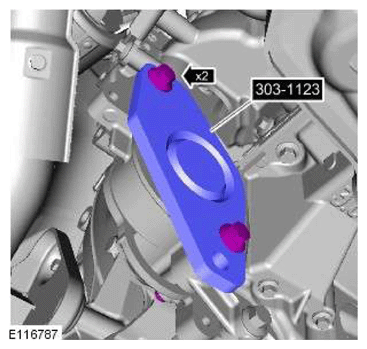

- Special Tool(s): 303-1123
Refer to: TRANSMISSION - TDV6 3.0L DIESEL
Refer to: STARTER MOTOR
Connect the battery ground cable.
Refer to: SPECIFICATIONS
