Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Take care when handling the cross-over pipe as damage to the insulating material may occur.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: EXHAUST SYSTEM - VEHICLES WITHOUT: DIESEL PARTICULATE FILTER (DPF)

    Refer to: EXHAUST SYSTEM - VEHICLES WITH: DIESEL PARTICULATE FILTER (DPF)

  3. Refer to: TRANSMISSION SUPPORT CROSSMEMBER - TDV6 3.0L DIESEL
  4. NOTE: The transmission is lowered for access.

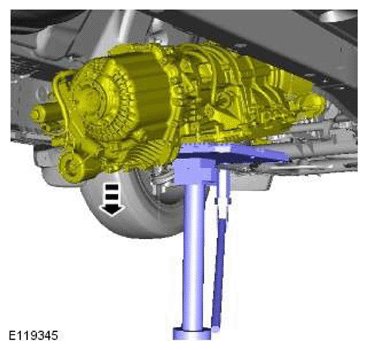

    G11602046
    • General Equipment: Transmission jack

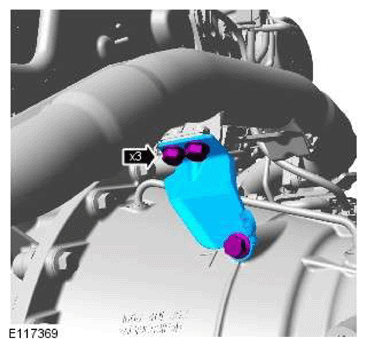

  5. G11602047

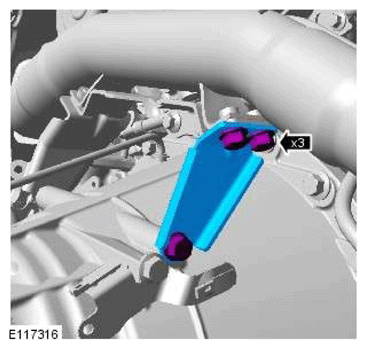

  6. G11602048

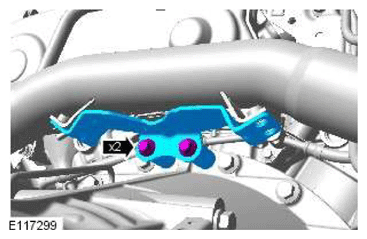

  7. G11602049
  8. G11607496

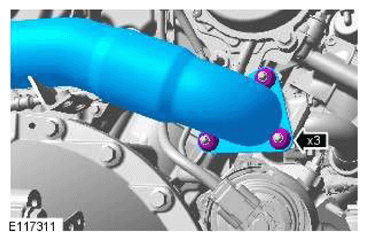

  9. CAUTION: Discard the nuts.
    G11602051

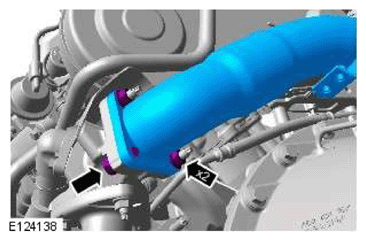

  10. CAUTION: Discard the nuts and bolt.
    G11602052
  11. G11602053
  12. CAUTION: Discard the studs.
    G11695734
  13. CAUTION: Discard the studs.
    G11695735
  14. NOTE: Discard the gasket.
    G11602056
