Removal And Installation: Installation
WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

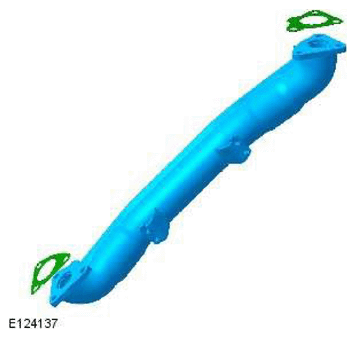

- NOTE: Install new gaskets.
Renew Part: Exhaust manifold cross-over pipe gaskets Quantity: 1 .

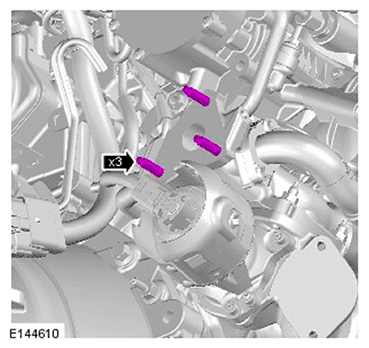

- NOTE: New exhaust manifold retaining studs must be fitted if the old studs are removed.
Renew Part: Exhaust manifold cross-over pipe studs Quantity: 1 .
Torque Specification: 13 Nm

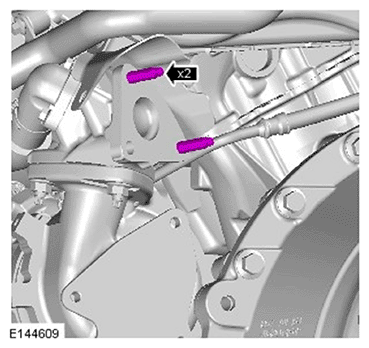

- NOTE: New exhaust manifold retaining studs must be fitted if the old studs are removed.
Renew Part: Exhaust manifold cross-over pipe studs Quantity: 1 .
Torque Specification: 13 Nm

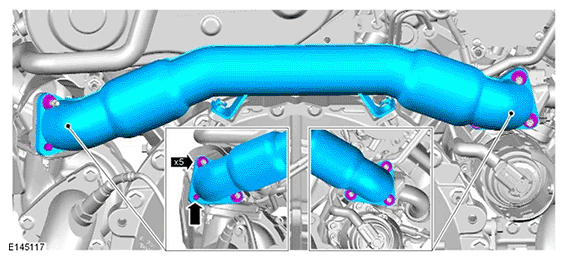

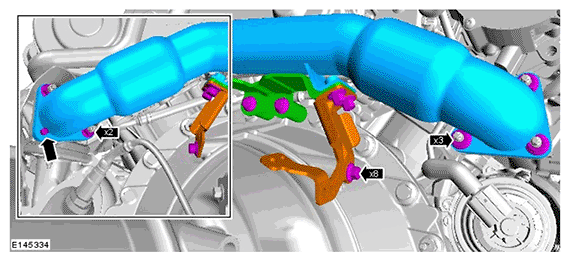

- CAUTION: New exhaust manifold nuts and bolt must be fitted.
Renew Part: Exhaust manifold cross-over pipe nuts and bolts Quantity: 1 .

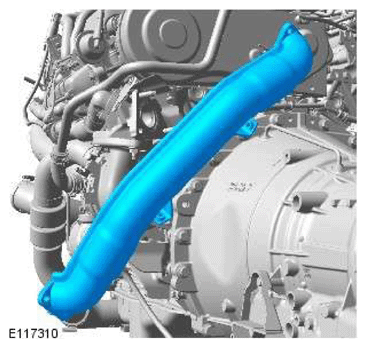

Check for correct alignment.

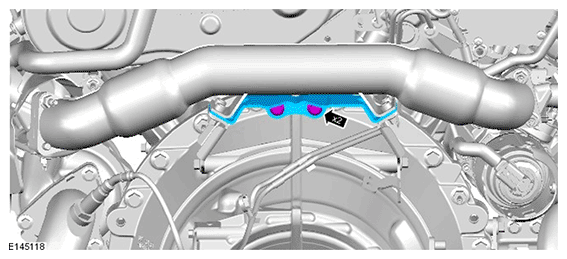

Torque Specification: 23 Nm
Check for correct alignment.
Torque Specification: 23 Nm

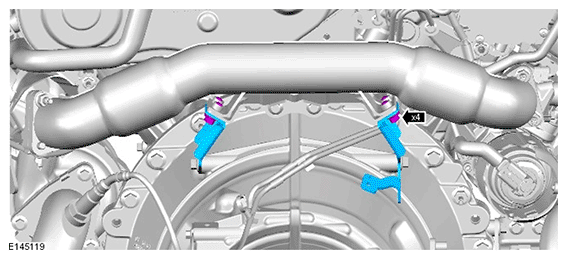

Torque Specification: 23 Nm

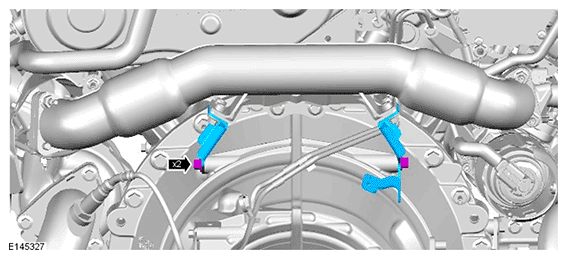

Torque Specification: 23 Nm

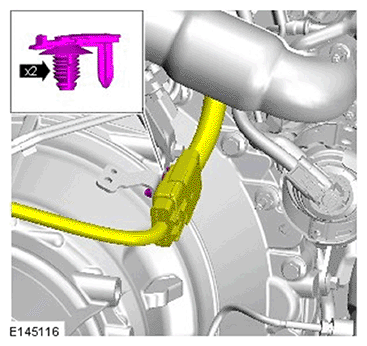

Torque Specification: 11 Nm

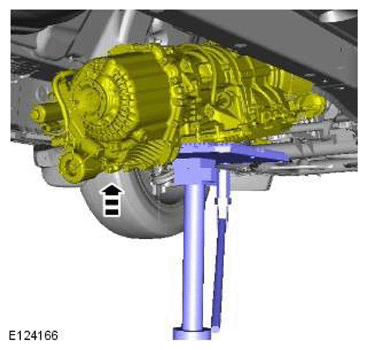

General Equipment: Transmission jack
- Refer to: TRANSMISSION SUPPORT CROSSMEMBER - TDV6 3.0L DIESEL
- Refer to: EXHAUST SYSTEM - VEHICLES WITHOUT: DIESEL PARTICULATE FILTER (DPF)
Refer to: EXHAUST SYSTEM - VEHICLES WITH: DIESEL PARTICULATE FILTER (DPF)
