General Procedures: Filling

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION: Make sure that the component is clean, free of foreign material and lubricant.

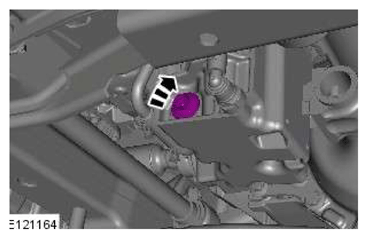

    G11601717

    Renew Part: Oil pan drain plug Quantity: 1  .

    Torque Specification: 23 Nm

  2. Refer to: ENGINE UNDERSHIELD
  3. Lower the vehicle.
  4. G11695299
    • Clean the components.
    • Install a new oil filter element to the oil filter cover.
    • Install a new oil filter cover O-ring seal.

      Renew Part: Oil filter O-ring seal(s) Quantity: 1  .

    • Lubricate the O-ring seal with clean engine oil.

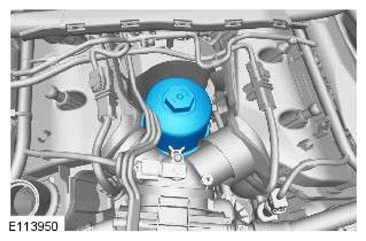

  5. G11602090

    Torque Specification: 28 Nm

  6. Refer to: ENGINE COVER - TDV6 3.0L DIESEL

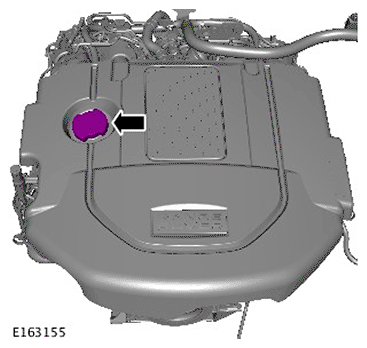

  7. G11695301

    Fill the engine with the recommended oil to the correct level.

  8. Clean any residual engine oil from the oil filler cap area.
  9. G11695301
  10. CAUTION: Make sure that the vehicle has been left for 5 minutes from filling with oil.
    • Start the engine and allow to run for 10 minutes, stop the engine.
    • Check for leaks.
  11. CAUTION: Make sure that the selector lever is in the park (P) position.
    • Set the ignition to the ON position.

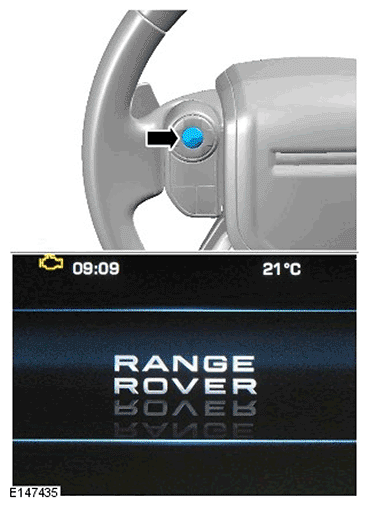

  12. G11695303
    • Press the left-hand OK button to access the Instrument Cluster (IC) Main Menu.

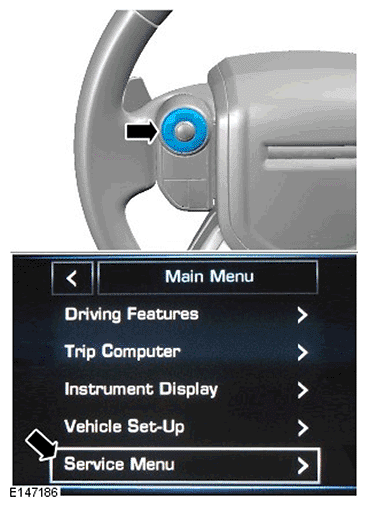

  13. G11695304
    • Press the left-hand directional button and select Service Menu.

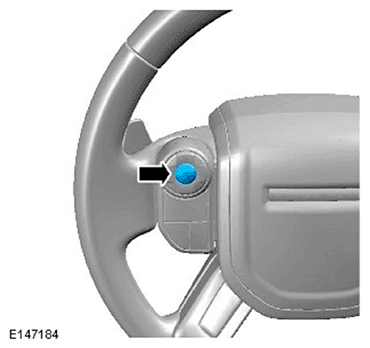

  14. G11695305
    • Press the left-hand OK button.

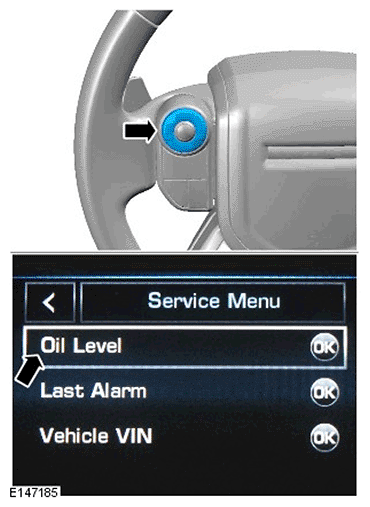

  15. G11695306
    • Press the left-hand directional button and select the Oil Level display.

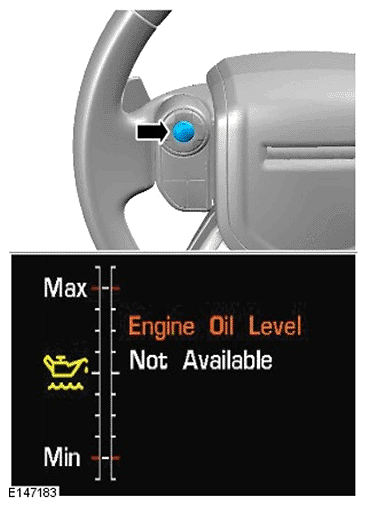

  16. G11695307
    • Press the left-hand OK button to access the Oil Level display.
  17. CAUTION: Make sure that the hood is open.

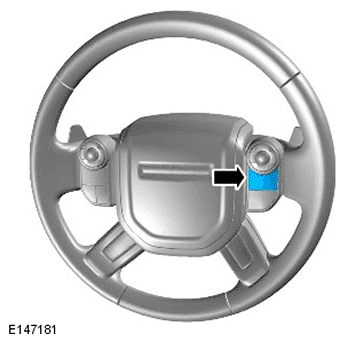

    G11695308
    • Press the speed control cancel button twice within 2 seconds while being on the oil level display.

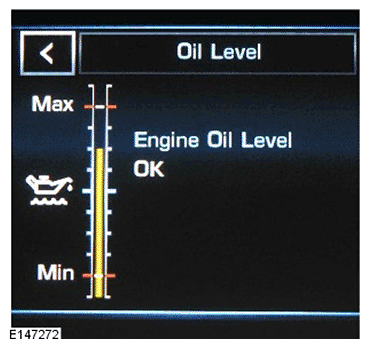

  18. G11695309
    • The message center displays the actual oil level in service mode.
    • Only after having started and run the engine for 10 minutes (as indicated in Step  10), switch off the engine, then stabilizing for 10 minutes, take a reading from the oil level display and, if necessary top up with engine oil.
  19. Set the ignition to the OFF position.
  20. Allow 10 minutes for the engine oil level to stabilize if there has been additional oil top up.
    NOTE: The following steps are to update the average oil level value.
  21. Repeat step  11 to  17 to access the oil level display in service mode.
  22. NOTE: The actual volume displayed on the bar graph will be written into the electronic control unit as a new value.

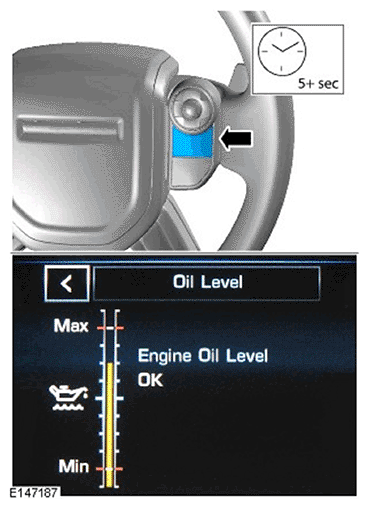

    G11695310
    • Press and hold the speed control cancel button for more than 5 seconds.
    • The message center display the current oil level.
    NOTE: Close the hood.
  23. Set the ignition to the OFF position.
  24. Set the ignition to the ON position.
  25. NOTE: The following steps are to check the current oil level in a customer mode.
    G11695303
    • Press the left-hand OK button to access the Instrument Cluster (IC) Main Menu.
  26. G11695304
    • Press the left-hand directional button and select Service Menu.
  27. G11695305
    • Press the left-hand OK button.
  28. G11695306
    • Press the left-hand directional button and select the Oil Level display.

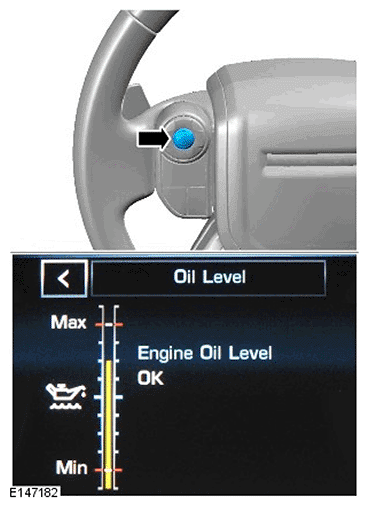

  29. G11695315
    • Press the left-hand OK button and follow the instructions.
      NOTE: If the message shows "Not available" wait for further 10 mins to allow the oil level to stabilize.

      Make sure that the average oil level value has now been updated.
