General Procedures: Draining

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: The spilling of hot engine oil is unavoidable during this procedure, care must be taken to prevent scalding.
CAUTION: Make sure the engine is warm.
  1. Refer to: ENGINE COVER - TDV6 3.0L DIESEL
  2. G11602090
    • Rotate the oil filter element housing six complete turns counter-clockwise.
    • Allow the engine oil to drain from the oil filter element housing for two minutes.
    • Remove the oil filter element housing.
  3. NOTE: Remove and discard the O-ring seal.
    G11602091
  4. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  5. Refer to: ENGINE UNDERSHIELD
  6. WARNING: Observe due care when draining engine oil as the oil can be very hot.
    CAUTION: Be prepared to collect escaping oil.

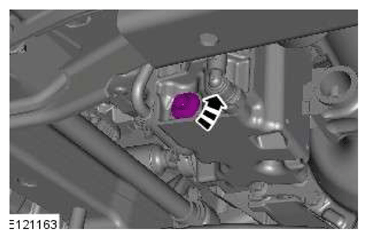

    G11601716

    Drain the engine oil.
