Engine (Removal): Removal: Part(S)

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
STEP PART NAME QUANTITY
Step 36 Steering column lower shaft lower bolt 1
CAUTION: Make sure that all openings are sealed. Use new blanking caps.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  1. Disconnect the battery ground cable.

    Refer to: SPECIFICATIONS

  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: HOOD
  4. Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
  5. Refer to: INTAKE AIR SHUTOFF THROTTLE

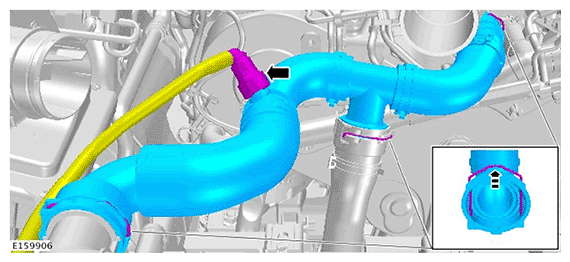

  6. G11695921
  7. G11695922
  8. G11695923
  9. G11695924
  10. G11695925
  11. G11695926
    CAUTION: Be prepared to collect escaping coolant.
  12. G11695927
  13. G11695679
  14. G11695929
  15. G11695930
  16. G11695931
  17. CAUTION: Be prepared to collect escaping coolant.
    G11695932
  18. CAUTION: Be prepared to collect escaping fluids.
    G11695933
  19. CAUTION: Be prepared to collect escaping coolant.
    G11695934
  20. G11695654
  21. G11695635
  22. G11695937
  23. G11695938
  24. G11695939
  25. G11695940
    CAUTION: Be prepared to collect escaping coolant.
  26. G11695941
  27. G11695942
  28. G11695943
  29. CAUTION: Take extra care not to damage the surrounding components.

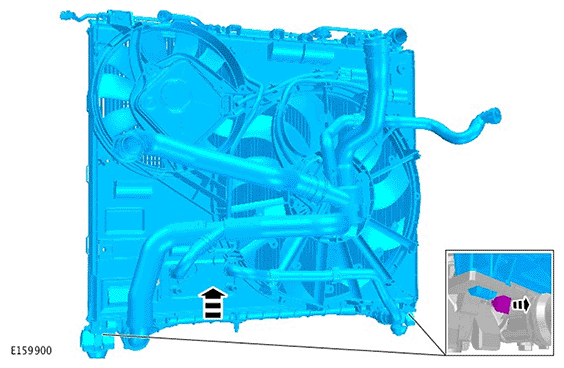

    G11695944
  30. G11695945
  31. G11695946
  32. G11695947
  33. Refer to: ACCESSORY DRIVE BELT
  34. G11600680
  35. G11606807
  36. CAUTION: Discard the bolt.
    NOTE: RHD shown, LHD is similar.
    G11598577

    Align the steering wheel to straight ahead.

    Renew Part: Steering column lower shaft lower bolt Quantity: 1  .

  37. Refer to: SECONDARY BULKHEAD CENTER PANEL - TDV6 3.0L DIESEL
  38. CAUTION: Be prepared to collect escaping coolant.
    G11695951
  39. G11694196
  40. G11695953
  41. CAUTION: Be prepared to collect escaping fuel.
    G11695954
  42. G11695955
  43. G11695956
  44. G11695957

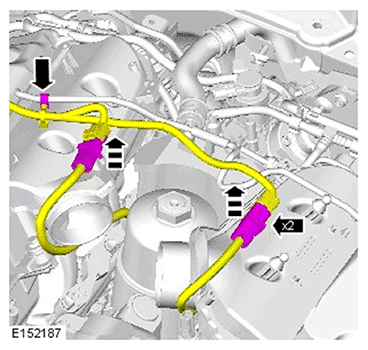

  45. G11695958
  46. G11695959

    Special Tool(s): 303-1141  , 303-1141-01

  47. G11695960
    • Install the special tool.

      Special Tool(s): 303-021

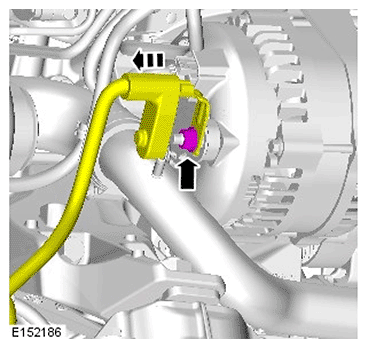

  48. G11695961
  49. Refer to: TRANSMISSION - TDV6 3.0L DIESEL
  50. G11695637
  51. G11695963
  52. G11695964
  53. G11695960
    • Remove the special tool.

      Special Tool(s): 303-021

  54. WARNING: This step requires the aid of another technician.
    CAUTION: Be prepared to collect escaping fluids.

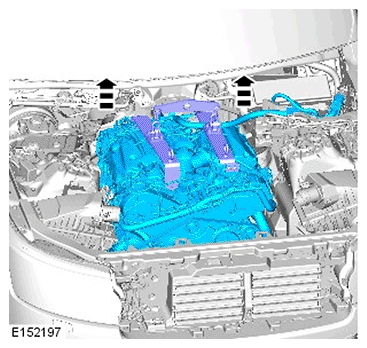

    G11695966

    Carefully and progressively raise and remove the engine.
