Special Tool(S)
WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
| 303-021 Engine support bracket |
|
| 303-1141 Engine lifting kit |
|
| 303-1141-01 Engine lifting bracket - Rear |
CAUTION:
Make sure that all openings are sealed. Use new blanking caps.
NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.
-
WARNING: This step requires the aid of another technician.CAUTION: Be prepared to collect escaping fluids.

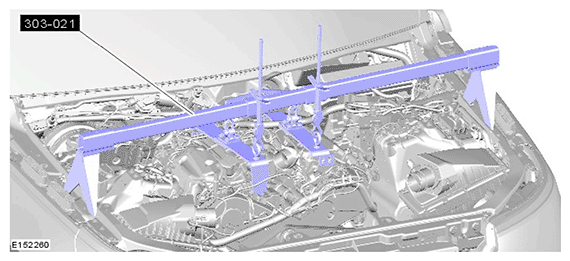

Install the special tool.
Special Tool(s): 303-021
Torque Specification: 110 Nm
Torque Specification: 110 Nm
Torque Specification: 9 Nm
- Refer to: TRANSMISSION - TDV6 3.0L DIESEL
Torque Specification: 12 Nm
Remove the special tool.
Special Tool(s): 303-021
Remove the special tool.

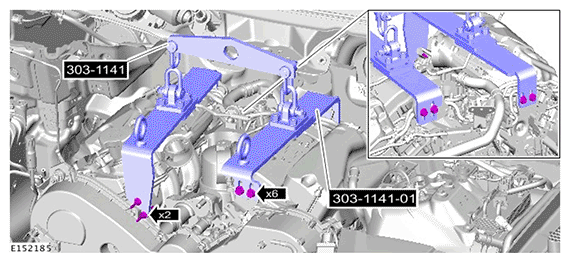

Special Tool(s): 303-1141 , 303-1141-01
Torque Specification: 8 Nm
Torque Specification: 8 Nm
Torque Specification: 8 Nm
Torque Specification: 10 Nm
Torque Specification: 10 Nm
- Refer to: SECONDARY BULKHEAD CENTER PANEL - TDV6 3.0L DIESELCAUTION: Make sure that a new bolt is installed.CAUTION: Make sure that a new bolt is installed.
- Torque Specification: 30 Nm
Torque Specification: 25 Nm
- Refer to: ACCESSORY DRIVE BELT
Torque Specification: 7 Nm
Torque Specification: 10 Nm
Torque Specification: 6 Nm
Torque Specification: 6 Nm
Torque Specification: 6 Nm
Torque Specification: 10 Nm
- Refer to: INTAKE AIR SHUTOFF THROTTLE
- Refer to: HOOD
- Disconnect the battery ground cable.
Refer to: SPECIFICATIONS
- Refer to: LOW-PRESSURE FUEL SYSTEM BLEEDING
