Special Tool(S)

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
G11675175
 100-012
Slide Hammer
G11601800
 303-1117
Timing Peg, Automatic Transmission
G11601913
 303-1123
Locking Tool, Flywheel
G11601317
 310-138A
Holding Tool, Fuel Pump Pulley
G11601318
 310-139A
Holding Tool, Fuel Pump Pulley
G11602206
 310-213
Fuel Injector Removal Adapter
CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some components shown removed for clarity.
  1. Always follow the Diesel fuel system health and safety precautions, when carrying out any repairs to the fuel system.

    Refer to: DIESEL FUEL SYSTEM HEALTH AND SAFETY PRECAUTIONS

  2. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

  3. Disconnect the battery ground cable.

    Refer to: SPECIFICATIONS

  4. Drain the engine oil.

    Refer to: ENGINE OIL DRAINING AND FILLING

  5. Remove the engine from the vehicle.

    Refer to: ENGINE

  6. G11756418
    • Install the special tool.
    • Special Tool(s): 303-1123
  7. G11756419
    • Remove and discard the flexplate bolts.
    • Remove the flexplate.
  8. Install the engine on a suitable stand.
  9. G11756418
    • Remove the special tool.
  10. G11698022

    Remove the accessory drive belt tensioner.

  11. G11756422
    • Release the wiring harness.
  12. G11598652

    Remove the generator.

  13. G11607498

    Disconnect the electrical connector.

  14. G11607499

    Remove the vacuum hose.

  15. G11756426

    Release the wiring harness.

  16. G11756427

    Release the vacuum harness.

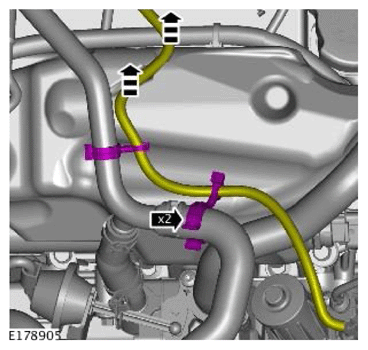

  17. G11756428

    Release the wiring harness.

  18. G11756429
    • Remove the Exhaust Gas Recirculation (EGR) inlet pipe.
    • Remove and discard the gasket.
  19. G11756430
    • Disconnect the electrical connectors.
    • Release the coolant hose.
  20. G11756431

    Disconnect the electrical connectors.

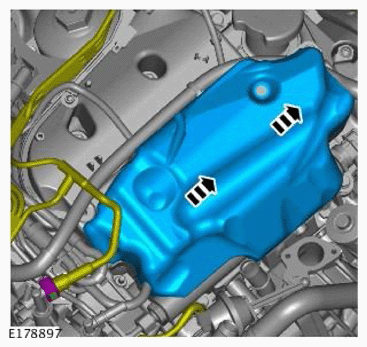

  21. G11756432

    Remove the Noise Vibration Harshness (NVH) material.

  22. G11756433

    Disconnect the connectors and release the harness.

  23. G11756249

    Disconnect the connectors and release the harness.

  24. G11756109

    Disconnect the connectors and release the harness.

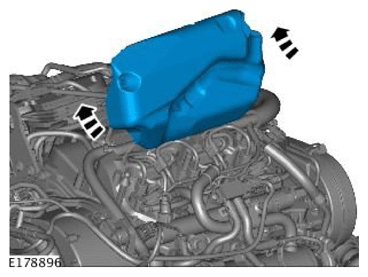

  25. G11756436

    Remove the NVH material.

  26. G11756437

    Disconnect the connectors and release the harness.

  27. G11756438
    • Disconnect the connectors and release the harness.
    • Remove the bolt.
  28. G11756439

    Remove the idler pulley.

  29. G11756440

    Disconnect the connectors and release the harness.

  30. G11756441

    Remove the engine wiring harness.

  31. CAUTION: Be prepared to collect escaping coolant.
    G11756442
    • Release the retaining clips.
    • Remove the EGR hoses.
  32. G11756443

    Remove the bolt from the crankcase ventilation pipe.

  33. G11756444

    Release the pipe from the EGR valve and discard the gasket.

  34. CAUTION: Be prepared to collect escaping coolant.
    G11756445
    • Release the EGR valve outlet tube.
    • Remove the EGR valve.
  35. G11756446

    Remove the crankcase ventilation pipe.

  36. G11756447
    • Remove the Engine vent oil separator.
    • Remove and discard the O-ring seals.
  37. G11756448
    • Disconnect the vacuum hose clip at the brake vacuum pump.
    • Release the retaining clip.
    • Remove the retaining nuts.
    • Remove the vacuum hose harness.
  38. CAUTION: Be prepared to collect escaping coolant.
    G11756449

    Release the EGR inlet hose.

  39. G11756450

    Remove the EGR heatshield.

  40. CAUTION: Be prepared to collect escaping coolant.
    G11756451
    • Remove the retaining bolts.
    • Remove the EGR valve.
    • Remove and discard the gasket.
  41. G11607497
    • Remove the retaining bolts.
    • Remove the exhaust manifold heatshield.

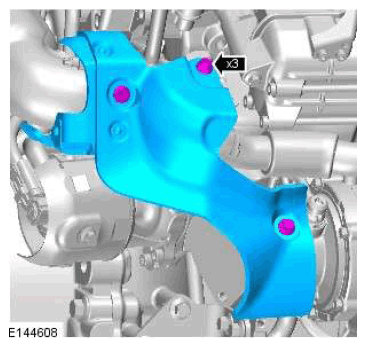

  42. G11607496

    Remove the turbocharger heatshield.

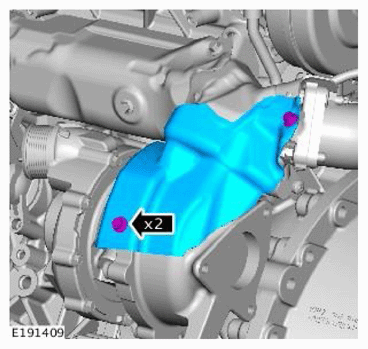

  43. G11756454

    Remove the turbocharger heatshield.

  44. G11756455

    Remove the exhaust manifold heatshield.

    WARNING: Be prepared to collect escaping oil.
  45. G11756456
    • Remove the bolt.
    • Remove and discard the seals.
  46. G11607452

    Remove the bolt.

  47. G11756458

    Remove the turbocharger support bracket.

  48. CAUTION: Be prepared to collect escaping coolant.
    G11607453

    Remove the bolt.

  49. CAUTION: Be prepared to collect escaping oil.
    G11756460

    Remove and discard the oil return pipe.

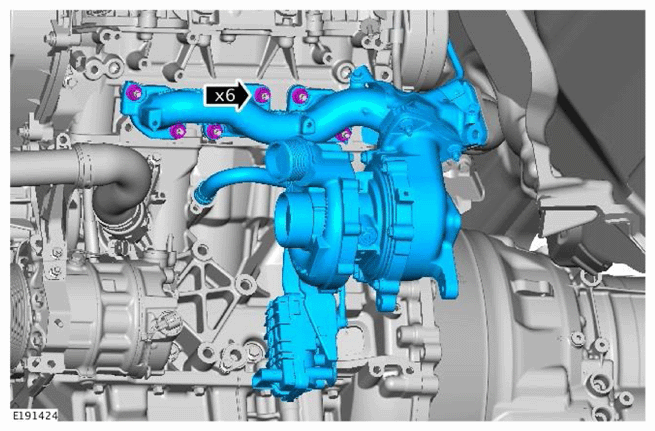

  50. G11756461
    • Remove and discard the nuts.
    • Remove the exhaust manifold and turbocharger assembly.
  51. CAUTION: Be prepared to collect escaping coolant.
    G11607460

    Remove and discard the coolant pipe.

  52. G11756463
    • Remove and discard the gasket.
    • Remove and discard the exhaust manifold studs.
  53. CAUTION: Be prepared to collect escaping oil.
    G11756464
    • Disconnect the oil extraction tube clip from the oil pan.
    • Remove the retaining bolts.
    • Remove the retaining nut.
    • Remove the oil extraction tube.
    CAUTION: Be prepared to collect escaping oil.

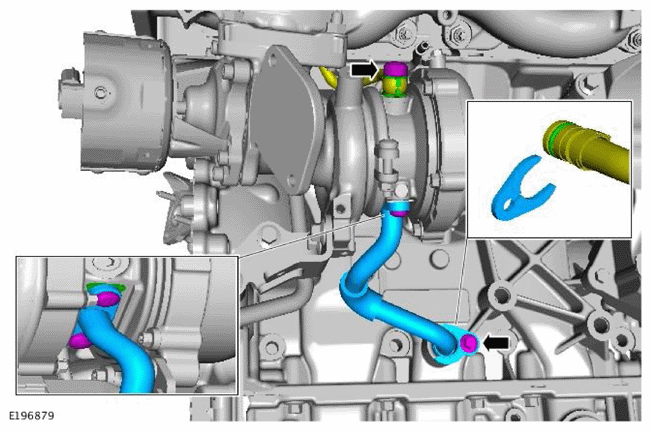

  54. G11756465
    • Remove the turbocharger banjo bolt.
    • Discard the banjo bolt washers.
    • Remove the retaining bolts from the oil drain tube.
    • Remove and discard the gasket.
    • Remove and discard the O-ring seal.
  55. G11756466

    Remove the right turbocharger support bracket.

  56. G11756467
    • Remove and discard the exhaust manifold nuts.
    • Remove the exhaust manifold and turbocharger assembly.
  57. G11756468
    • Remove and discard the exhaust manifold gasket.
    • Remove and discard the exhaust manifold studs.

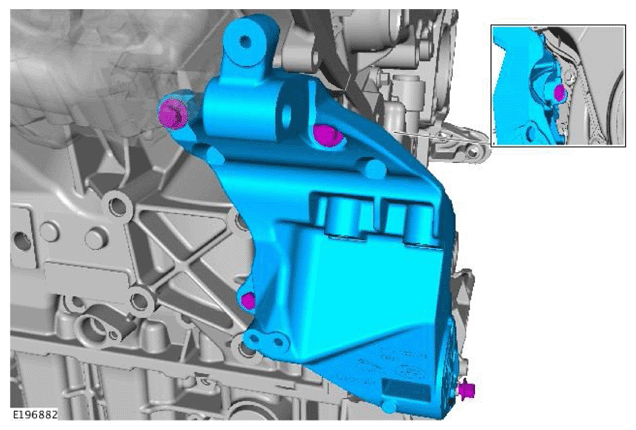

  58. G11756469
    • Remove the five retaining bolts.
    • Remove the accessory drive belt tensioner bracket.
  59. G11756470
    • Remove the retaining bolt.
    • Remove the turbocharger oil feed pipe.
    • Discard the O-ring seal.
  60. G11756471
    • Remove the two retaining bolts.
    • Remove the Air Conditioning (A/C) support bracket.
    CAUTION: Be prepared to collect escaping fuel.
  61. G11756472
    • Disconnect the fuel injector return connectors.
    • Disconnect the high pressure connectors.
    • Release the remaining clips as illustrated.
    • Remove the fuel lines.
    CAUTION: Be prepared to collect escaping fuel.
  62. G11756473
    • Remove the fuel rail retaining bracket.
    • Release the high-pressure fuel rail connectors.
    • Remove and discard the high-pressure fuel pipes.
    CAUTION: Be prepared to collect escaping fuel.
  63. G11756474
    • Remove the fuel rail retaining brackets.
    • Release the high-pressure fuel rail connectors.
    • Remove and discard the high-pressure fuel pipes.
    CAUTION: Be prepared to collect escaping fuel.
  64. G11756475
    • Remove the retaining bolt.
    • Remove and discard the fuel rail balance pipe.
    CAUTION: Be prepared to collect escaping fuel.

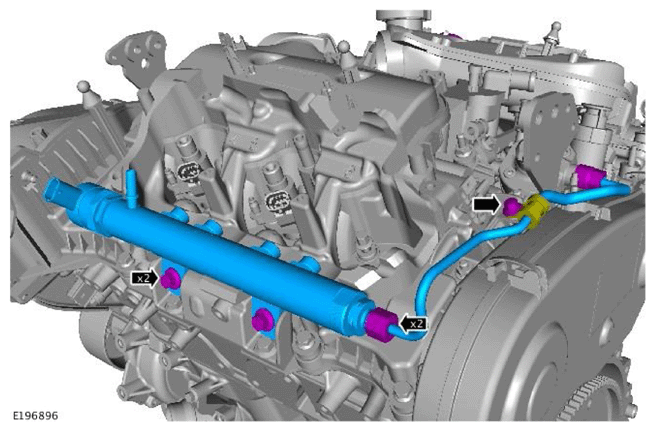

  65. G11756476
    • Release the high-pressure fuel connectors.
    • Remove the fuel line securing bracket retaining bolt.
    • Remove and discard the high-pressure fuel pipe.
    • Remove the fuel rail retaining bolts.
    • Remove the fuel rail.
    CAUTION: Be prepared to collect escaping fuel.

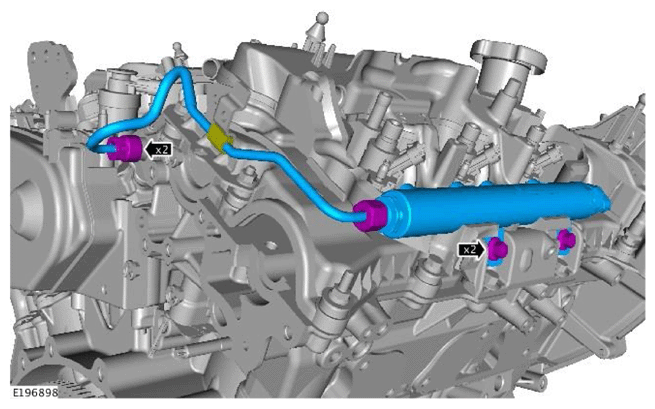

  66. G11756477
    • Release the high-pressure fuel connectors.
    • Remove and discard the high-pressure fuel pipe.
    • Remove the fuel rail retaining bolts.
    • Remove the fuel rail.
  67. G11756478

    Remove the Rear End Accessory Drive (READ) cover.

  68. G11601803

    Remove the rubber grommet.

  69. G11601805

    Install the special tool.

    Special Tool(s): 303-1117

  70. G11607826

    Remove and discard the fuel injection pump belt.

  71. G11756482
    • Install the special tool.

      Special Tool(s): 310-139A

    • Remove the fuel injection pump pulley nut.
    • Remove the special tool.

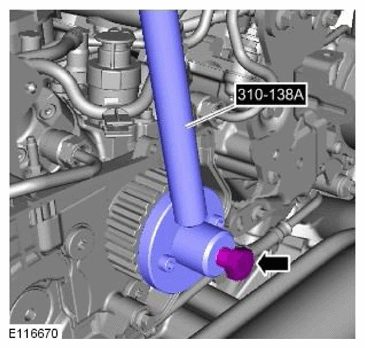

  72. G11756483
    • Install the special tool.

      Special Tool(s): 310-138A

    • Tighten the bolt to release the fuel injection pump pulley.
    • Remove the special tool.
  73. G11756484

    Remove the fuel injection pump pulley.

  74. G11601331

    Remove and discard the fuel injection pump retaining bolts.

  75. G11756486

    Remove the fuel injection pump retaining bracket.

    CAUTION: Be prepared to collect escaping fuel.
  76. G11756487
    • Remove the fuel injection pump retaining bolts.
    • Remove the fuel injection pump.
  77. Remove the special tool.
  78. G11601803

    Install the rubber grommet.

  79. NOTE: Repeat this step for the remaining fuel injectors.
    G11709985

    Remove the fuel injector retaining bolts.

  80. Using the pneumatic vacuum gun, vacuum foreign material from the high-pressure fuel supply lines, the fuel injectors and the fuel rail.

    Refer to: FUEL INJECTION COMPONENT CLEANING

    NOTE: Repeat this step for the remaining fuel injectors.
  81. G11709959
    • Remove the fuel injector as illustrated.
    • Special Tool(s): 100-012
    • Special Tool(s): 310-213
      NOTE: Repeat this step for the remaining fuel injectors.
  82. G11695882
    • Remove and discard the O-ring seals.
    • Remove and discard the sealing washers.
  83. G11602198

    Remove the accessory drive belt idler pulley.

  84. G11695857

    Remove the coolant pump pulley.

  85. G11695858

    Remove the crankshaft pulley.

  86. G11756495

    Remove the NVH material.

  87. G11756496

    Remove the pins.

  88. G11756497

    Remove the fuel pipe bracket.

  89. G11756498

    Remove the left fuel rail support bracket.

  90. G11756499

    Remove the NVH material.

  91. G11756500

    Remove the bracket.

  92. G11756501

    Remove the pins.

  93. G11756502

    Remove the fuel pipe bracket.

  94. G11756503

    Remove the right fuel rail support bracket.

  95. G11601942

    Remove the camshaft position (CMP) sensor.

  96. G11601943
    • Remove the engine coolant outlet.
    • Remove and discard the gasket.
  97. G11756506
    • Remove the coolant outlet channel.
  98. G11756507

    Remove the Crankshaft Position (CKP) sensor bracket.

  99. G11756508

    Remove the CKP sensor.
