Vacuum And Oil Scavenge Pump
WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

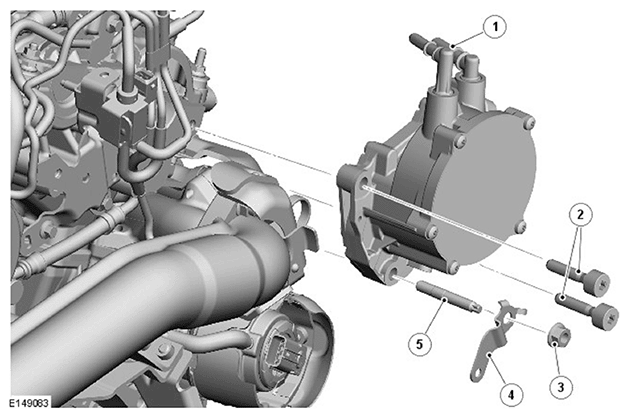

| ITEM | DESCRIPTION |
|---|---|
| 1 | Vacuum pipe connections |
| 2 | Torx bolt (2 off) |
| 3 | Nut |
| 4 | Bracket (emission hose) |
| 5 | Stud |
The vacuum and oil scavenge pump is located at the rear of the right cylinder head and driven from the exhaust camshaft. The pump provides the vacuum used by the Exhaust Gas Recirculation (EGR), turbocharger and brake booster systems, and scavenges oil from the turbochargers.
