Rocker Arms And Hydraulic Lash Adjusters
WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

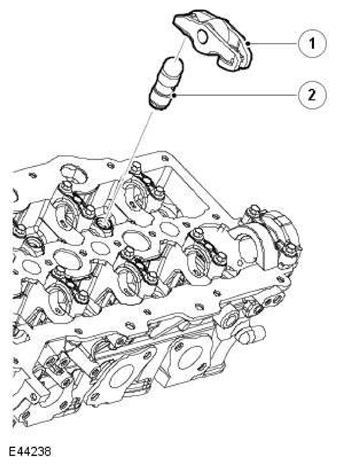

| ITEM | DESCRIPTION |
|---|---|
| 1 | Rocker arm (24 off, 12 per cylinder head) |
| 2 | Hydraulic lash adjuster (24 off, 12 per cylinder head) |
The lightweight valve gear provides good economy and noise levels. Valve head diameters are 31 mm (1.220 in) for the exhaust and 35 mm (1.378 in) for the intake. All valves have 5 mm (0.197 in) diameter stems supported in seats and guide inserts. Valve spring collets, collars seats locate single valve springs on both intake and exhaust valves. Valve stem seals are integrated into the valve spring seats.
