Piston Cooling Jets

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

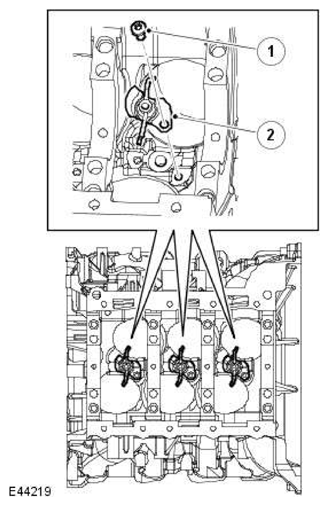

G11601693
ITEM DESCRIPTION
1 Bolt
2 Cooling jet

Jets located in the cylinder block provide piston and piston pin lubrication and cooling. These jets spray oil on to the inside of the piston, the oil then flows through 2 internal wave shaped channels to help cool each piston crown.
