Oil Pan
WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

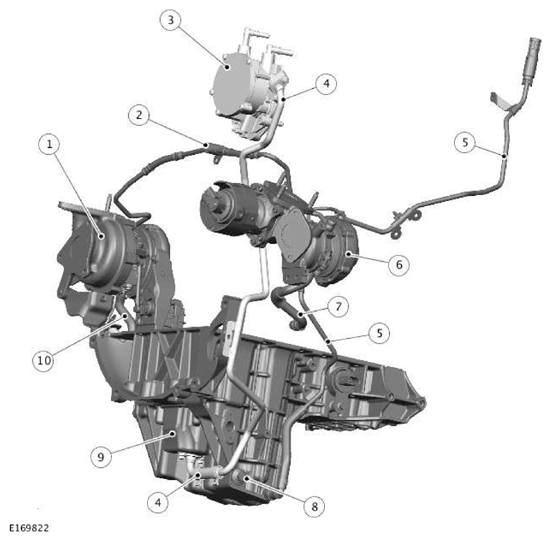

| ITEM | DESCRIPTION |
|---|---|
| 1 | Primary turbocharger |
| 2 | Turbocharger oil feed pipes |
| 3 | Vacuum and oil scavenge pump |
| 4 | Oil scavenge pipe |
| 5 | Oil extraction tube |
| 6 | Secondary Turbocharger |
| 7 | Secondary Turbocharger oil return tube |
| 8 | Drain plug |
| 9 | Secondary reservoir |
| 10 | Primary Turbocharger oil return tube |
Due to the wide range of inclines Land Rover vehicles operate across, the geometry of the oil pan has been configured to guarantee oil pick-up across all operating angles. An oil scavenge system has been developed to guarantee excellent oil flow through the turbochargers on severe side-slopes. At extreme angles there is a risk the turbochargers may be below the oil level in the oil pan, restricting oil return flow.
To overcome this, the engine uses:
- The oil pump to supply oil to the turbocharger bearings from the main reservoir of the oil pan.
- A secondary reservoir in the oil pan, sealed off from the main reservoir, to receive oil from the turbocharger bearings.
- The vacuum and oil scavenge pump to assist the oil flow from the turbocharger bearings by scavenging oil from the secondary reservoir into the right camshaft cover.
For service, a drain plug and an oil extraction tube are installed to drain the main body of the oil pan.
