Lubrication System
WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

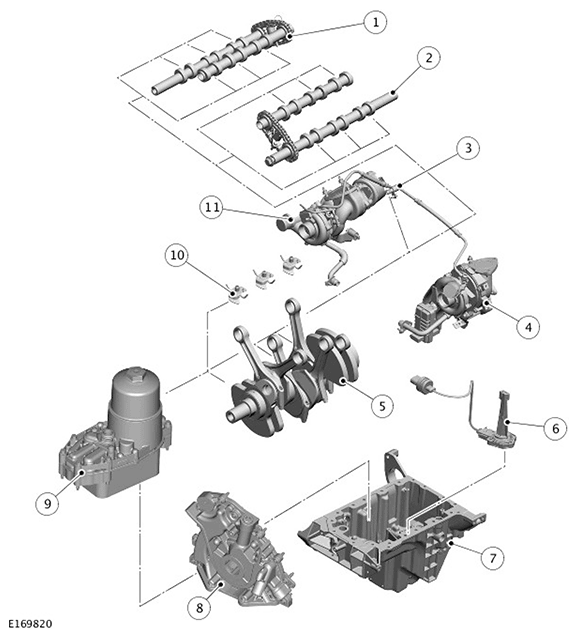

Twin Turbocharger version shown, Monoturbo version similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Intake camshaft |
| 2 | Exhaust camshaft |
| 3 | Turbocharger oil supply |
| 4 | Primary turbocharger |
| 5 | Crankshaft and connecting rods |
| 6 | Oil level and temperature sensor |
| 7 | Oil pan |
| 8 | Oil pump |
| 9 | Oil cooler and filter assembly |
| 10 | Piston cooling jets |
| 11 | Secondary turbocharger |
Oil is drawn from the oil pan and pressurized by the oil pump. The output from the oil pump is then filtered and distributed through internal oil passageways.
All moving parts are lubricated by pressure or splash oil. Pressurized oil is also provided for operation of the hydraulic lash adjusters and the timing gear chain tensioners.
