Intake And Exhaust Valves
WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

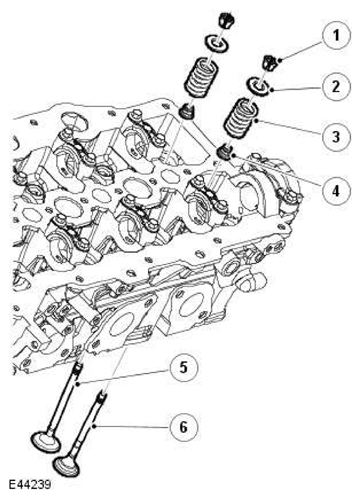

| ITEM | DESCRIPTION |
|---|---|
| 1 | Valve spring collet (24 off, 12 per cylinder head) |
| 2 | Valve spring retainer (24 off, 12 per cylinder head) |
| 3 | Valve spring (24 off, 12 per cylinder head) |
| 4 | Valve stem seal (24 off, 12 per cylinder head) |
| 5 | Intake valve (12 off, 6 per cylinder head) |
| 6 | Exhaust valve (12 off, 6 per cylinder head) |
Each cylinder head incorporates 2 overhead camshafts operating 4 valves per cylinder via rocker arms with hydraulic lash adjusters.
