Exhaust Manifolds
WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Left exhaust manifold is shown, right exhaust manifold is similar.

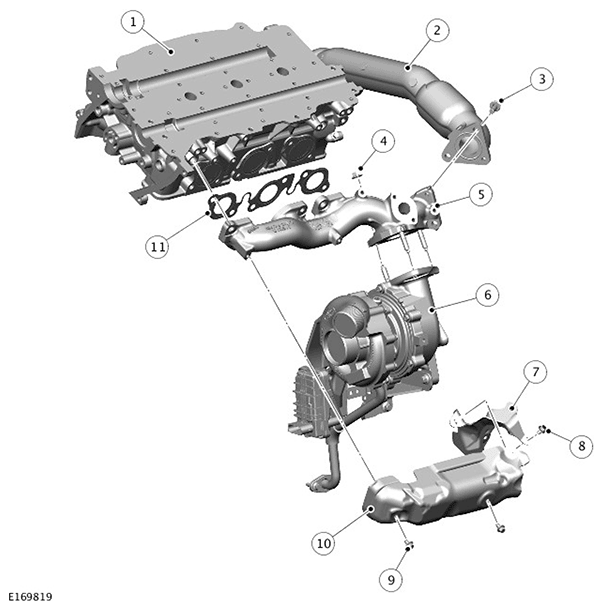

| ITEM | DESCRIPTION |
|---|---|
| 1 | Cylinder head |
| 2 | Connecting pipe |
| 3 | Bolt (3 off) |
| 4 | Nut (3 off) |
| 5 | Exhaust manifold |
| 6 | Turbocharger (primary turbocharger shown) |
| 7 | Manifold rear heat shield |
| 8 | Bolt |
| 9 | Bolt (2 off) |
| 10 | Manifold heat shield |
| 11 | Gasket |
The exhaust manifolds are sealed to the cylinder head by means of a gasket. Sacrificial sleeves are used to align the manifolds. These sleeves must be changed when refitting the manifolds.
Each manifold has a connection for the EGR transfer pipe.
The engine is fitted with twin variable geometry turbochargers, which fix to the exhaust manifolds by a 3-hole flange and a gasket.
