Cylinder Numbering

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
G11601694
ITEM DESCRIPTION
A DIN standard cylinder numbering (A = engine rear)

DIN cylinder firing order  1, 4, 2, 5, 3, 6

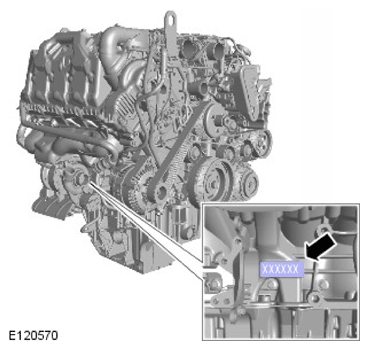

Engine Serial Number

G11592298

Engine serial number is stamped on the right side of the cylinder block.
