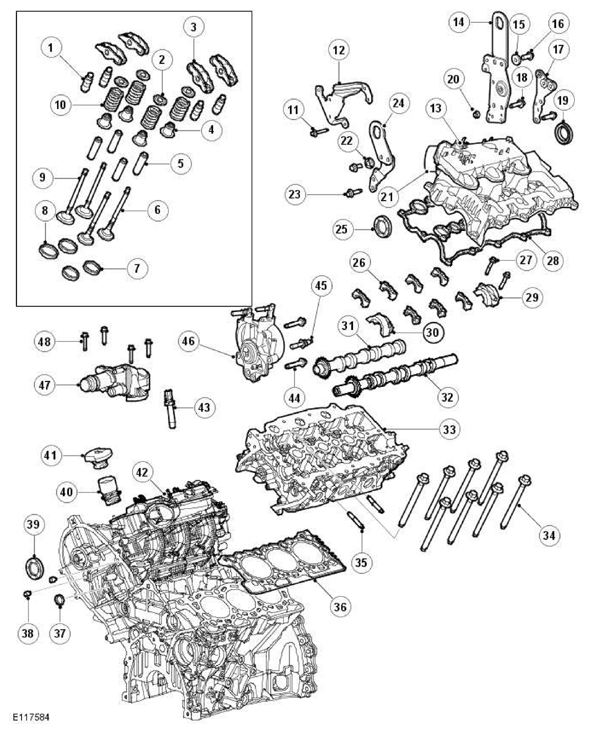

Cylinder Head Components
WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Left cylinder head shown, right cylinder head similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Hydraulic lash adjusters (12 off) |
| 2 | Valve spring retainers (12 off) |
| 3 | Rocker arms (12 off) |
| 4 | Valve stem seals (12 off) |
| 5 | Valve guides (12 off) |
| 6 | Exhaust valves (6 off) |
| 7 | Intake valve seats (6 off) |
| 8 | Exhaust valve seats (6 off) |
| 9 | Intake valves (6 off) |
| 10 | Valve springs (12 off) |
| 11 | Bolt |
| 12 | Bracket |
| 13 | Intake manifold |
| 14 | Lifting eye |
| 15 | Washer |
| 16 | Bolt |
| 17 | Bolt |
| 18 | Bolt |
| 19 | Seal |
| 20 | Cap |
| 21 | Intake manifold cover assembly |
| 22 | Washer |
| 23 | Bolt |
| 24 | Lifting eye |
| 25 | Seal |
| 26 | Camshaft bearing caps (7 off) |
| 27 | Bolts (18 off) |
| 28 | Gasket |
| 29 | Camshaft bearing cap and seal housing |
| 30 | Camshaft bearing cap and seal housing |
| 31 | Intake camshaft |
| 32 | Exhaust camshaft |
| 33 | Cylinder head |
| 34 | Cylinder head bolts (8 off) |
| 35 | Exhaust manifold studs (6 off) |
| 36 | Cylinder head gasket |
| 37 | Core plug |
| 38 | Plug |
| 39 | Seal |
| 40 | Oil filler tube |
| 41 | Oil filler cap |
| 42 | Intake manifold |
| 43 | Injectors (3 off) |
| 44 | Bolt (2 off) |
| 45 | Bolt |
| 46 | Vacuum and oil scavenge pump |
| 47 | Water outlet assembly |
| 48 | Bolt (4 off) |
