Camshaft Covers
WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

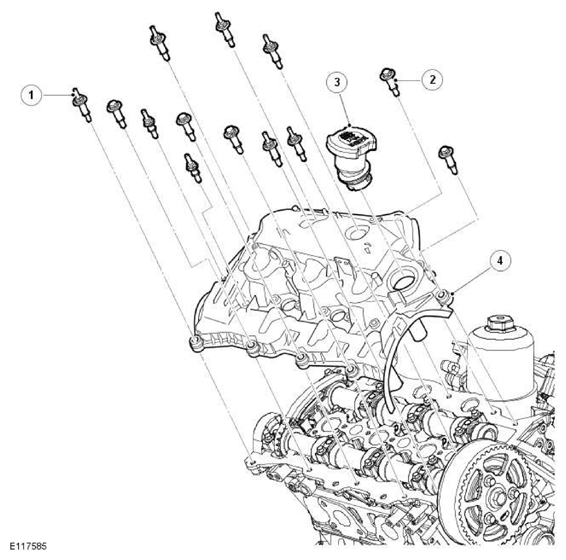

| ITEM | DESCRIPTION |
|---|---|
| 1 | Stud bolt M6 x 40 (6 off) |
| 2 | Bolt M6 x 40 (7 off) |
| 3 | Oil filler cap |
| 4 | Right camshaft cover assembly |
The right bank camshaft cover incorporates an outlet for the full load engine breather and the engine oil filler cap. The left bank camshaft cover incorporates an outlet for the part load engine breather.
For additional information, refer to: ENGINE EMISSION CONTROL
In-groove gaskets seal the joints between the camshaft covers and the cylinder heads. Together with spacers and seals on the camshaft cover fasteners, they also isolate the covers from direct contact with the cylinder heads, to reduce noise.
