Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable.

    Refer to: SPECIFICATIONS

  2. Remove the generator.

    Refer to: GENERATOR

  3. G11602131
  4. G11602132
  5. Refer to: TIMING BELT
  6. Refer to: CRANKSHAFT PULLEY - TDV6 3.0L DIESEL - GEN 2
  7. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  8. G11602135
  9. G11695803

    Remove the timing belt cover sealing strips.

  10. G11695804
  11. G11695805

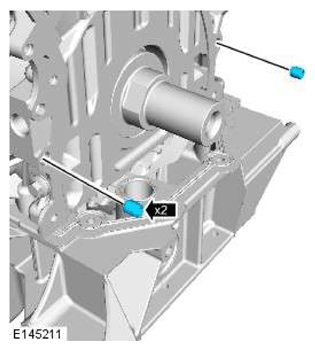

  12. G11602138

    Remove the alignment dowels (if equipped).
