Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
  2. G11695807
  3. NOTE: Prime the oil pump.
    G11695808

    Fill the orifice shown with 20 ml of engine oil.

  4. G11695809

    Rotate the oil pump drive 2 complete turns.

  5. CAUTION: Make sure that the mating faces are clean and free of foreign material.
    G11602141

    Apply sealant WSE-M4G323-A5 in an 3mm bead to the two areas shown, also apply a smear of sealant to the gasket face as illustrated.

  6. CAUTION: Make sure that the mating faces are clean and free of foreign material.
    NOTE: Make sure the gasket is installed correctly.
    G11695811

    Install the oil pump.

    NOTE: Remove the oil pump locator.
  7. G11695812

    Install two bolts to the oil pump, only finger tighten at this stage.

  8. G11602135

    Install the oil pump lower retaining bolts.

    Torque Specification: 10 Nm

  9. NOTE: Tighten the bolts in the sequence shown to 10 Nm.
    Fig 1: Oil Pump Bolts Tightening Sequence
    G11695814Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Secure the oil pump.

  10. G11695803

    Install the timing belt cover sealing strips.

  11. CAUTION: Do not use any lubricant on the crankshaft front seal, special tools or the crankshaft. Failure to follow this instruction may result in damage to the vehicle.
    NOTE: Make sure all component mating faces are clean.
    G11601904

    Install a new crankshaft front seal to the special tool.

    Special Tool(s): 303-1122

    Renew Part: Crankshaft front oil seal Quantity: 1  .

    NOTE: Remove the sleeve from the special tool.
  12. G11601905

    Reposition the crankshaft front seal along the special tool.

    Special Tool(s): 303-1122

  13. G11695492

    Install the special tool to the crankshaft.

    Special Tool(s): 303-1122

  14. G11695493

    Remove the special tool from the crankshaft.

    Special Tool(s): 303-1122

  15. G11695494

    Install the special tool to the crankshaft.

    Special Tool(s): 303-1121

  16. NOTE: Make sure the seal is installed correctly.
    G11695495

    Install the special tool to the crankshaft.

    Special Tool(s): 303-1121

  17. NOTE: Make sure the seal is installed correctly.
    G11695496

    Remove and discard the crankshaft pulley retaining bolt.

    Special Tool(s): 303-1121

    Renew Part: Crankshaft pulley bolt Quantity: 1  .

  18. G11695804
  19. Refer to: CRANKSHAFT PULLEY - TDV6 3.0L DIESEL - GEN 2
  20. Refer to: TIMING BELT
  21. Fig 2: Generator Mounting Bracket Bolts Tightening Sequence
    G11602159Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Tighten the bolts in the sequence shown.

    Torque Specification: 22 Nm

  22. Install the generator.

    Refer to: GENERATOR

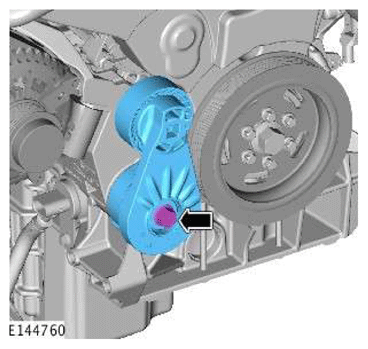

  23. G11602131

    Torque Specification: 45 Nm

  24. Connect the battery ground cable.

    Refer to: SPECIFICATIONS
