Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION: Make sure that the crankshaft rear oil seal is correctly located.
    G11601932

    Apply an 8 mm bead of sealant to the cylinder block in the areas shown.

    Renew Part: Crankshaft rear seal Quantity: 1  .

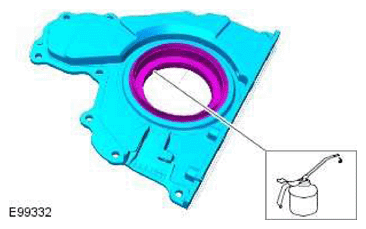

  2. G11601933
    • Lubricate the oil seal.
  3. G11601934

    Torque Specification: 10 Nm

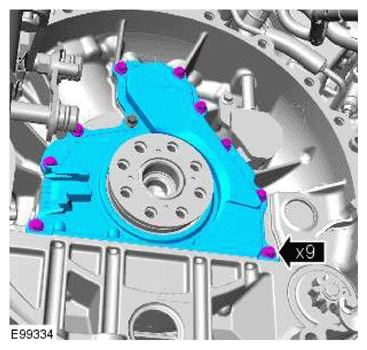

  4. G11601935

    Torque Specification: 10 Nm

  5. G11601930

    Torque Specification: 10 Nm

  6. Refer to: CRANKSHAFT POSITION SENSOR RING
  7. Connect the battery ground cable

    Refer to: SPECIFICATIONS
