Ignition Switch
WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.

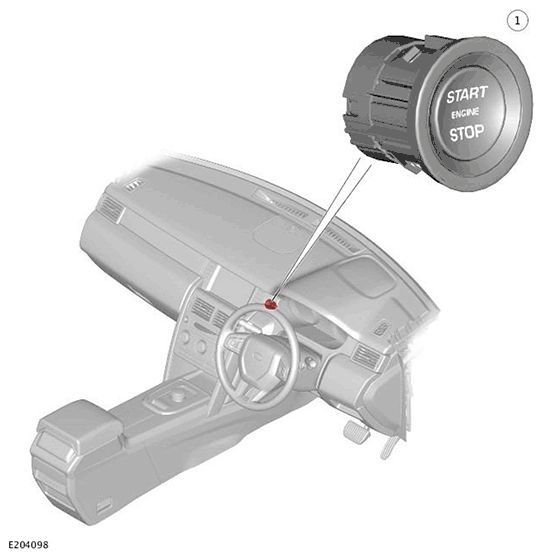

| ITEM |
DESCRIPTION |
| 1 |
Ignition switch |
The ignition switch is installed in the instrument panel and hardwired to the Central Junction Box (CJB). When the switch is pressed two signal lines from the CJB are connected to ground.
