Auto Stop/Start Switch - If Equipped

WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.

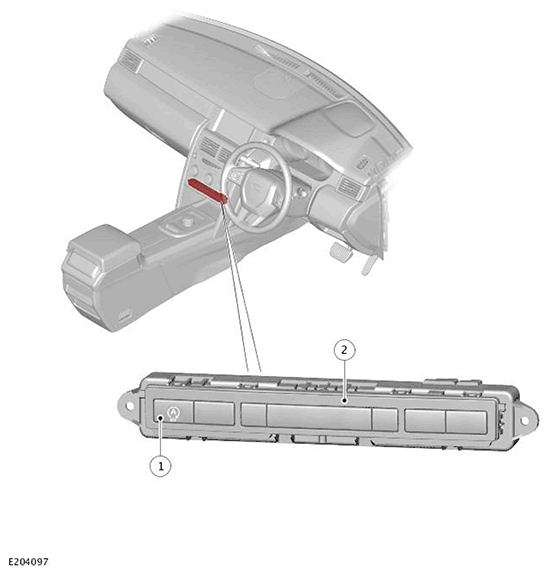

G11718532
ITEM DESCRIPTION
1 Auto stop/start switch
2 Terrain Response (TR) switchpack

The auto stop/start switch is located in the Terrain Response (TR) switchpack, on the floor console center trim. The auto stop/start switch remains illuminated while the auto stop/start system is active.

The auto stop/start switch is hardwired to the Central Junction Box (CJB), which it supplies with a ground signal when the switch is pressed.
