Differential Draining And Filling: Part(S)
WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport, 2017 Land Rover Discovery Sport, 2016 Land Rover Discovery Sport, and 2015 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.
| STEP | PART NAME | QUANTITY |
|---|---|---|
| Filling Step 1 | Rear differential drain plug | 1 |
| Filling Step 3 | Rear differential fill plug | 1 |
DRAINING
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .

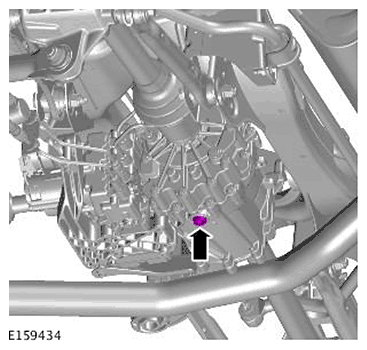

Remove and discard the rear differential drain plug.
-
CAUTION: Be prepared to collect escaping fluids.
Remove and discard the rear differential drain plug.
- Allow the rear differential fluid to drain into a suitable container.
FILLING
-
Install the new rear differential drain plug.
Renew Part: Rear differential drain plug Quantity: 1 .
Torque Specification: 34 Nm
- Fill the rear differential with the correct specification of fluid.
Refer to: SPECIFICATIONS .

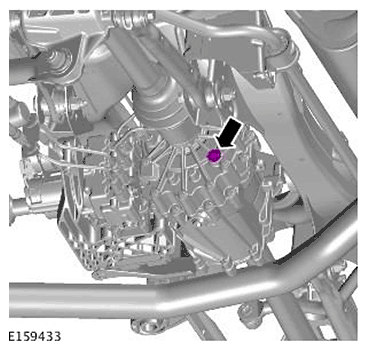

Install the new rear differential fill plug.
Renew Part: Rear differential fill plug Quantity: 1 .
Torque Specification: 34 Nm
