Draining And Filling

WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport, 2017 Land Rover Discovery Sport, 2016 Land Rover Discovery Sport, and 2015 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.
PART(S)

STEP PART NAME QUANTITY
Step 2 Rear differential fill plug 1
Step 3 Rear differential drain plug 1
  1. WARNING: Make sure to support the vehicle with axle stands.
    CAUTION: Make sure the vehicle is on a flat level surface.

    Raise and support the vehicle.

  2. NOTE: Discard the differential case filler plug washer.

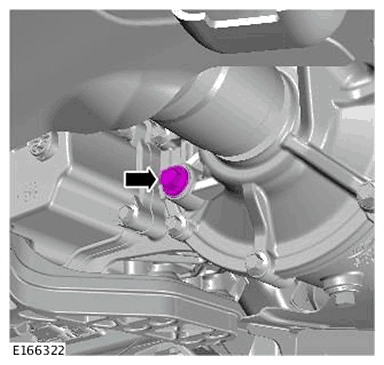

    G11716083

    Make sure the vehicle is level. Remove the rear differential case filler plug.

    Renew Part: Rear differential fill plug Quantity: 1  .

  3. NOTE: Discard the differential case fluid drain plug washer.
    G11716084

    Drain the differential fluid.

    Renew Part: Rear differential drain plug Quantity: 1  .

  4. CAUTION: Install a new washer.

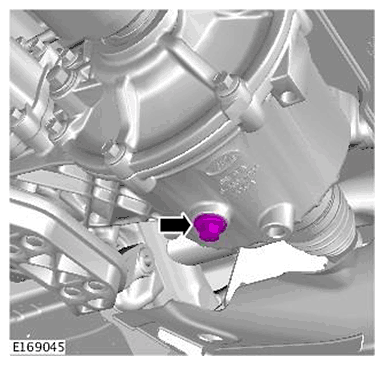

    G11716085

    Install the differential case fluid drain plug.

    Torque Specification: 34 Nm

  5. Fill the rear differential, until a thin bead of fluid runs from the filler hole.

    Refer to: SPECIFICATIONS

  6. CAUTION: Install a new washer.
    G11716083

    Install the differential case fluid filler plug.

    Torque Specification: 34 Nm

  7. Lower the vehicle.
