Active On-Demand Coupling Filling

WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport, 2017 Land Rover Discovery Sport, 2016 Land Rover Discovery Sport, and 2015 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • If installing a new active on-demand coupling, fill with 780 ml of fluid. It is not possible to completely drain the active on-demand coupling fluid during service. The procedure below MUST be followed for both filling and topping up.
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. CAUTION: Make sure the vehicle is on a flat level surface.

    Raise and support the vehicle on a suitable 4 post lift.

    Refer to: LIFTING

  2. No provision is made to fully drain the active on-demand coupling. During repair procedures, fluid will be lost. A container should be positioned to collect any spillage.
  3. CAUTION: This is a filler plug only and must not be used as a fluid level indicator.

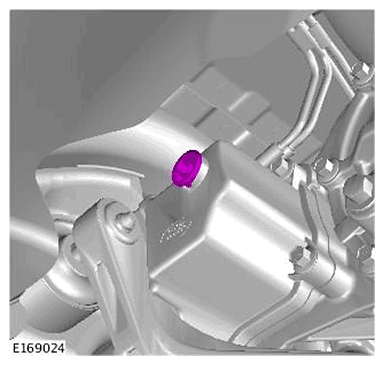

    G11716081

    Remove the active on-demand fluid filler plug.

  4. CAUTION: Care must be taken not to overfill the active on-demand coupling.

    Fill the active on-demand coupling with 780 ml of fluid.

    Refer to: SPECIFICATIONS

  5. CAUTION: This is a filler plug only and must not be used as a fluid level indicator.

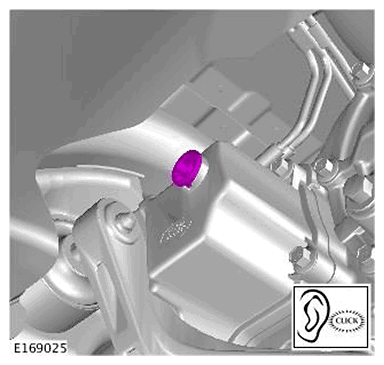

    G11716082

    Install the active on-demand fluid filler plug.

  6. Turn the ignition on for 5 minutes.
  7. Turn the ignition off.
