Component Location

WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.

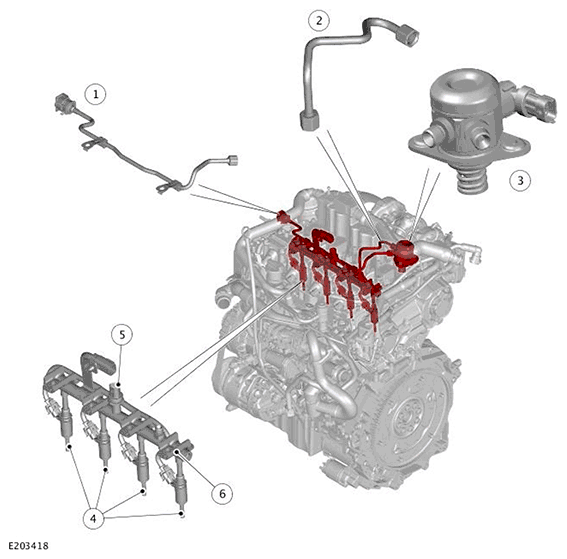

G11718414
ITEM DESCRIPTION
1 Low Pressure (LP) fuel pipe
2 High Pressure (HP) fuel line
3 HP fuel pump
4 Fuel injector (4 off)
5 Fuel Rail Pressure and Temperature (FRPT) sensor
6 Fuel rail
