Removing Hydraulic Cylinder (Convertible-Top Compartment Lid)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

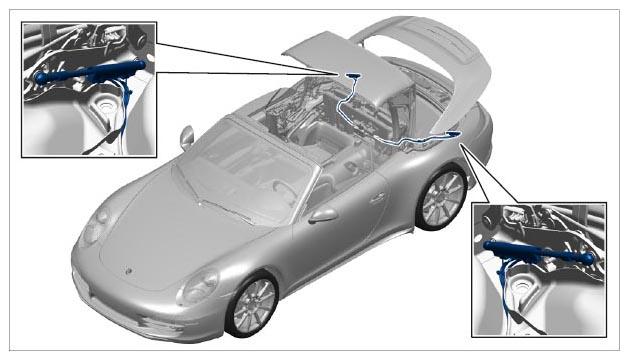

Fig 1: Identifying Hydraulic Cylinder For Convertible-Top Compartment Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

CAUTION: Incorrect handling of hydraulic system

Risk of damage to hydraulic system
Malfunction in hydraulic system

→ Do not bend, trap or crush hydraulic lines.

→ Protect hydraulic system from contamination.

Information

During assembly work, get another person to hold the lid open.

Remove safety clips -1- .

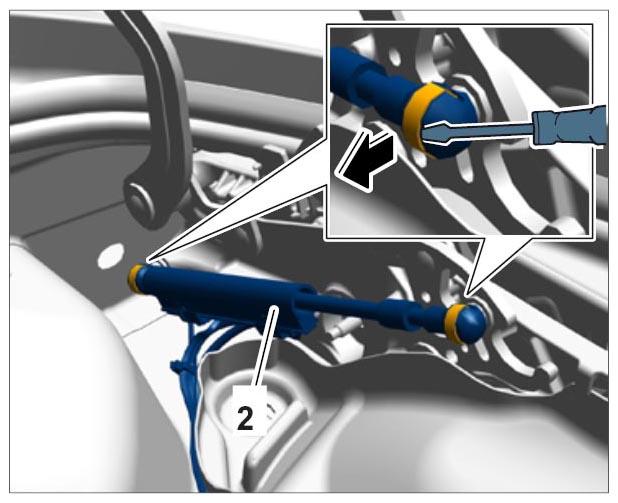

Fig 2: Removing Hydraulic Cylinder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove hydraulic cylinder -2- and place it in the vehicle.
Disconnect wire harness.

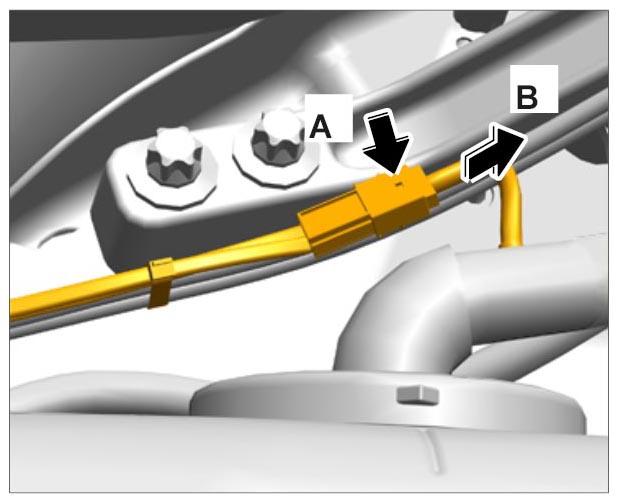

Fig 3: Disconnecting Wire Harness Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Release connector. -arrow A-
2. 3.2. Pull off connector. -arrow B-
Unclip wire harness at the roll-over bar -3- .

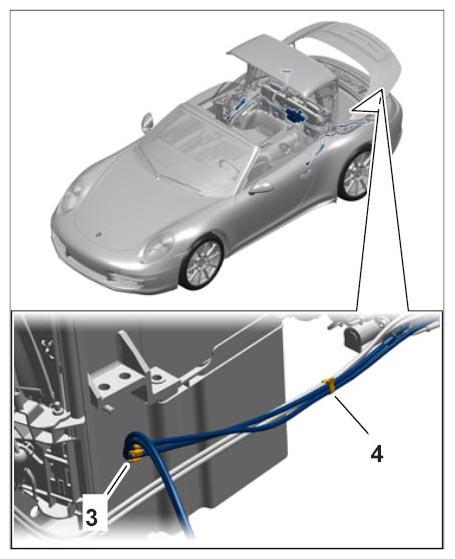

Fig 4: Detaching Lines
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Cut tie-wraps -4- .
Screw off line on the pump. → 618419 REMOVING AND INSTALLING HYDRAULIC PUMP
Remove hydraulic cylinder with lines.
