Removing Upper Lateral Seal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

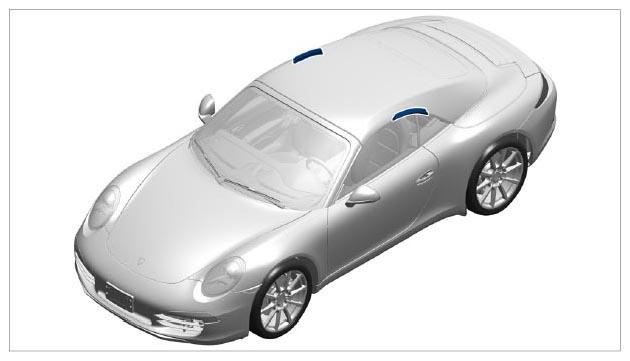

Fig 1: Identifying Upper Lateral Seal

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

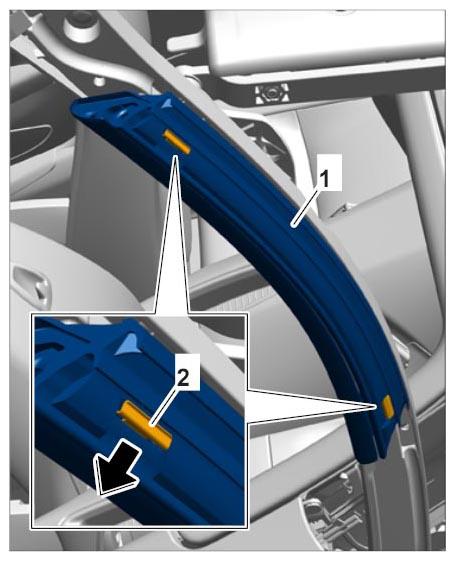

Pull off metal clips -2- .

Fig 2: Pulling Off Metal Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

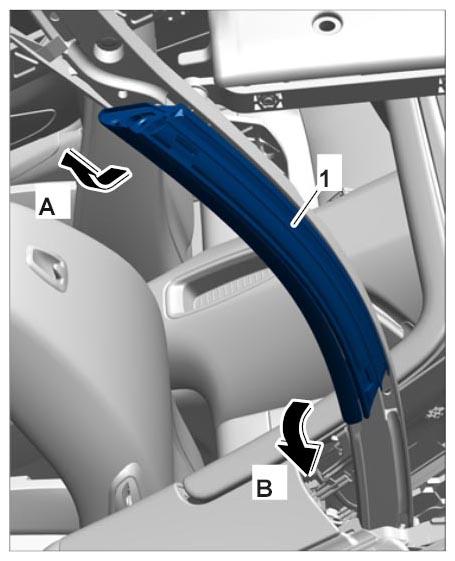

Unhook the seal from the guide.

Fig 3: Removing Seal From Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Unhook seal at the top. -arrow A-
2. 2.2. Unhook seal at the bottom. -arrow B-
3.
Remove seal.
