Removing Spreader Device

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

The spreader device (actuator) is located on the rear-axle wheel bearing housing instead of the mechanical spreader device with the parking-brake cable.

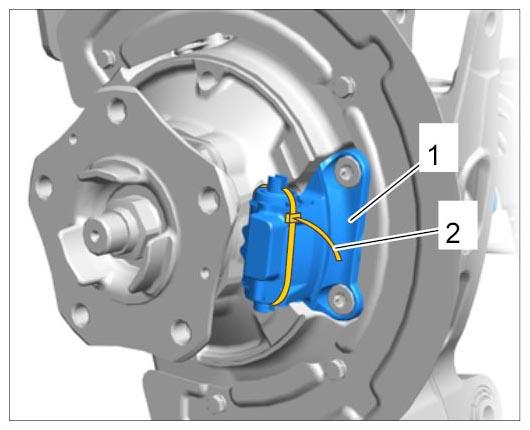

Actuator
Tie-wrap - prevents twisting

Fig 1: Identifying Actuator And Tie-Wrap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

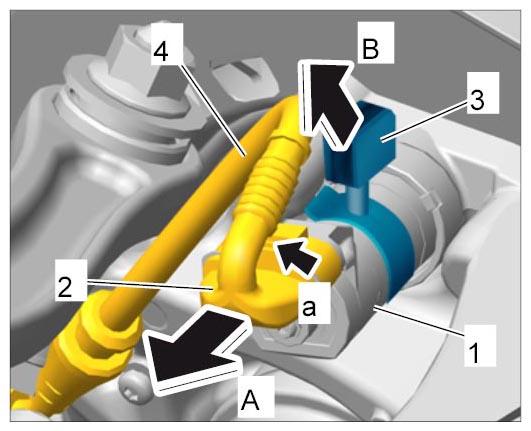

Release electric plug connection -2- at the actuator -1- (-a- ) and detach it -A- .
Unclip wire harness -4- from the retaining clip -3- .

Fig 2: Releasing Plug Connection For Actuator
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

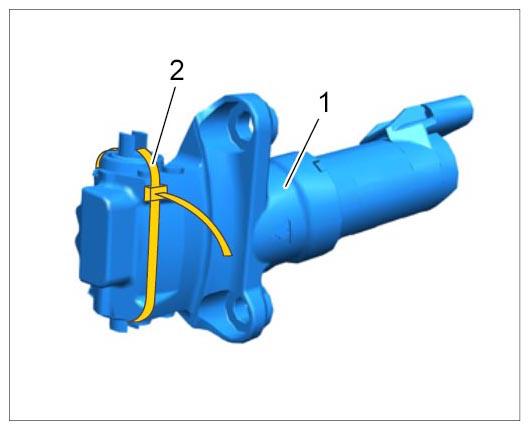

If the actuator -1- has to be re-used, secure it in the brake shoe mountings with a tie-wrap -2- to prevent it from twisting!

Fig 3: Identifying Actuator For Parking Brake Secured With Tie-Wrap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

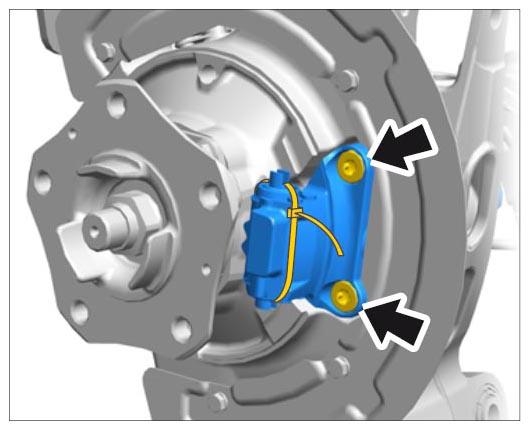

Remove the fastening screws on the actuator -arrows- .

Fig 4: Locating Actuator Mounting Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

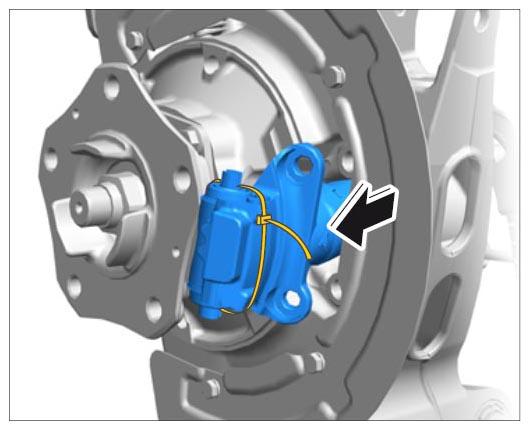

Remove fastening screws on the brake cover plate.
Turn the brake cover plate so that the actuator can be removed -arrow- .

Fig 5: Removing Actuator
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
