Component Information

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

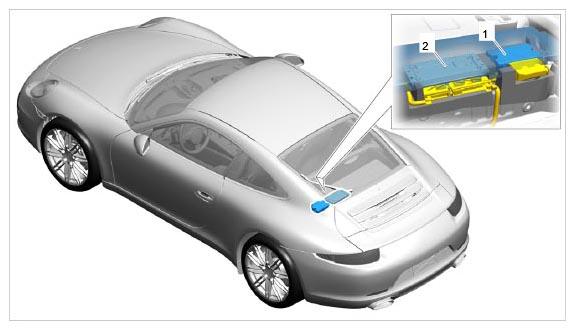

Fig 1: Identifying PASM And Parking Brake Control Units Installation Position
G09991828Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Parking brake control unit
  2. PASM control unit
