Removing Rear Brake Disc

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

PIWIS Tester II 9818 must be connected and started.
1. 1.1. Select parking brake.
2. 1.2. Select Maintenance/repairs.
3. 1.3. Move to installation position.
Disconnect the plug connection for the brake pad wear indicator and detach it from the holder.
Information
- Do not open the brake hydraulic system (brake line remains connected).
Detach brake calliper at the wheel bearing housing (wheel carrier) -arrows- and hang it at a suitable place in the wheel housing.
If the edge of the brake disc is protruding at the outer diameter, first reset the brake pads slightly and evenly.

→ 474119 REMOVING AND INSTALLING REAR BRAKE CALLIPER .

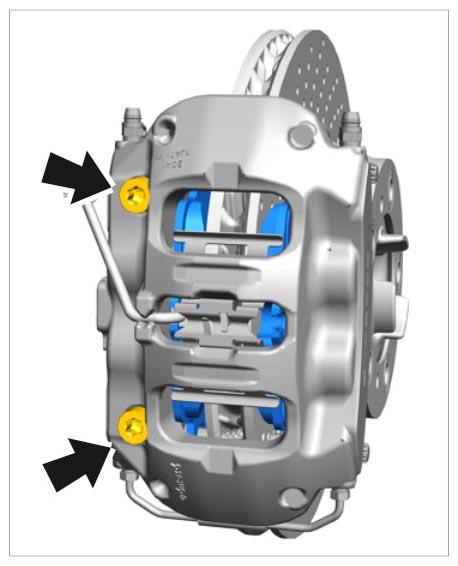

Fig 1: Locating Brake Calliper Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove brake disc.
1. 4.1. Remove fastening screws -arrows- and take off brake disc.

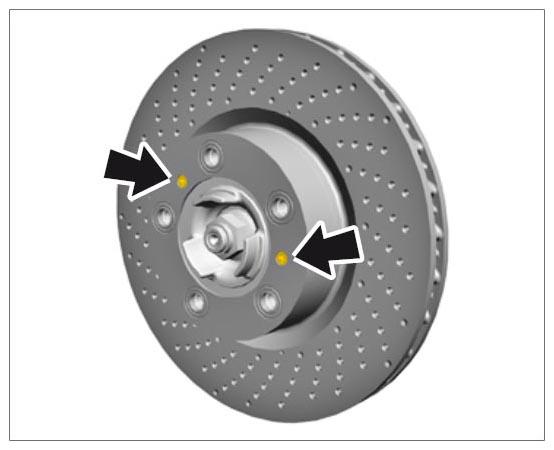

  Fig 2: Locating Brake Disc Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Information
  - Central bolts (911 GT3): The wheel adapter pins do not have to be removed in order to remove the brake disc.
2. 4.2. 911 Turbo with central bolts: Remove five wheel adapters and remove the brake disc.
  1. Fastening screws (5x)
  2. Wheel adapter (5x)
  3. Brake disc
  4. Wheel hub

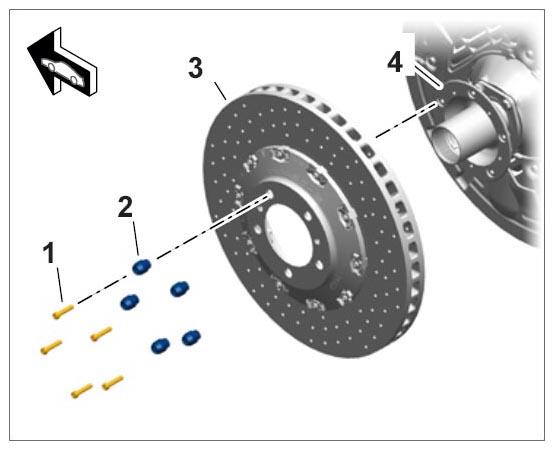

    Fig 3: Identifying Brake Disc Mounting On Wheels With Central Bolts
    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
