Removing Front Apron

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle.
Naturally, some steps also have to be performed on the opposite side of the vehicle as well.
These must be carried out as a mirror image of the steps shown for the front and rear.

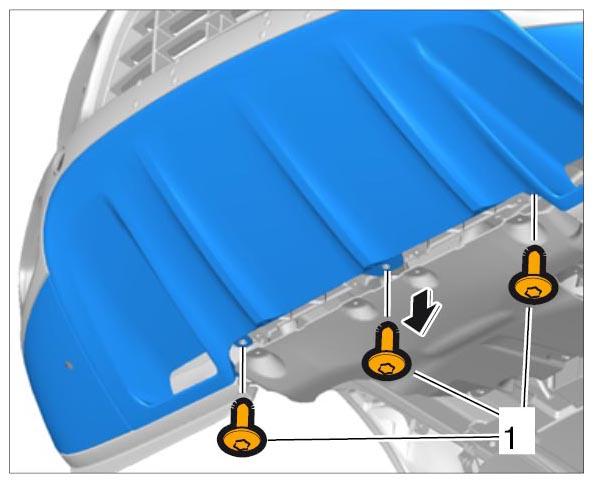

Unscrew fastening screws -1- at the bottom of the front apron.

Fig 1: Loosening Front Apron
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

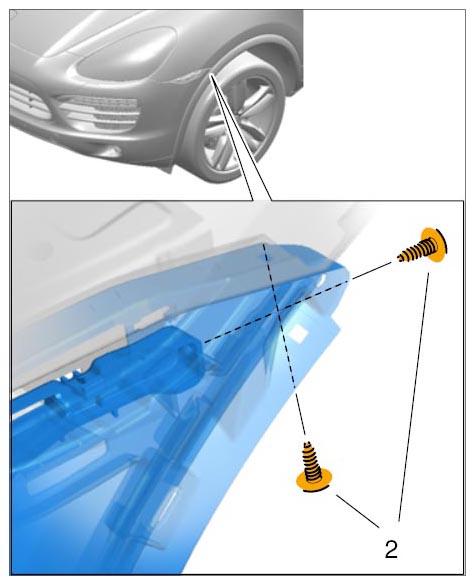

Unscrew fastening screws -2- for the wing and attachment strip.

Fig 2: Loosening Front Apron At Sides
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

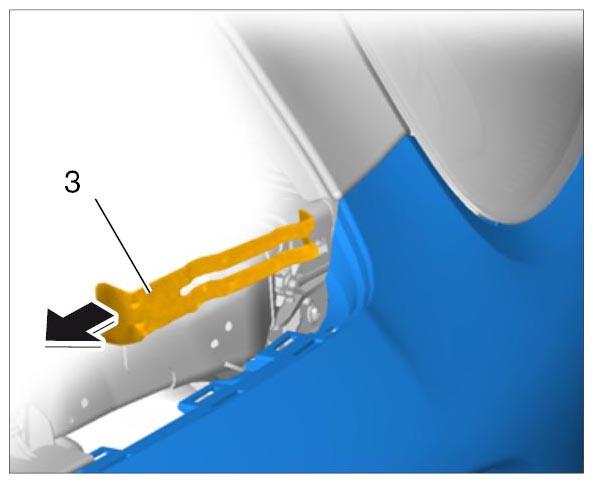

Pull safety clips -3- at the left and right off the guide pins.

Fig 3: Pulling Off Safety Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

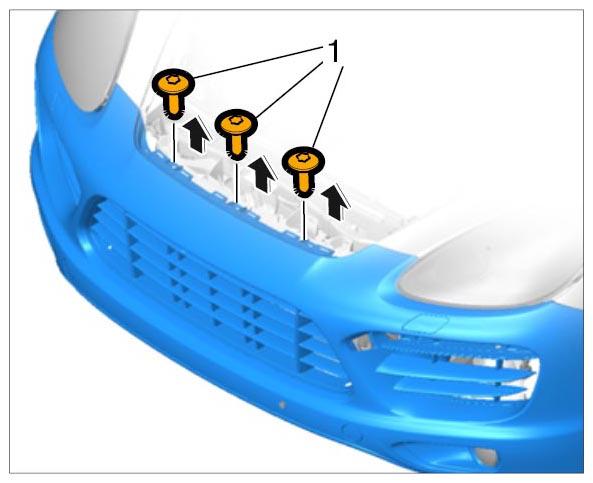

Unscrew front fastening screws -1- at the top.

Fig 4: Loosening Front Apron At Top
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

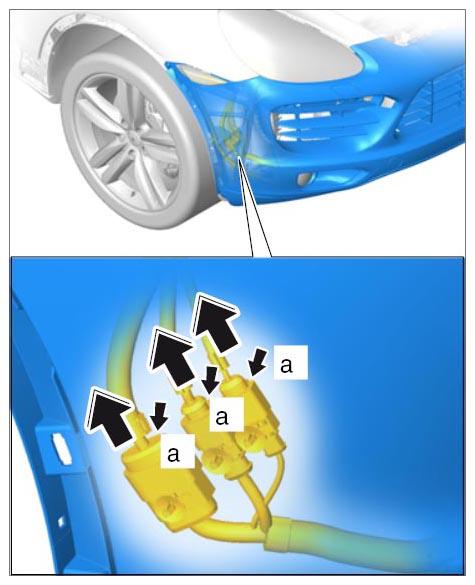

Disconnect wire harness on the right side.
1. 5.1. Press locking lugs -a- and pull off the connectors.

  Fig 5: Disconnecting Wire Harness
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

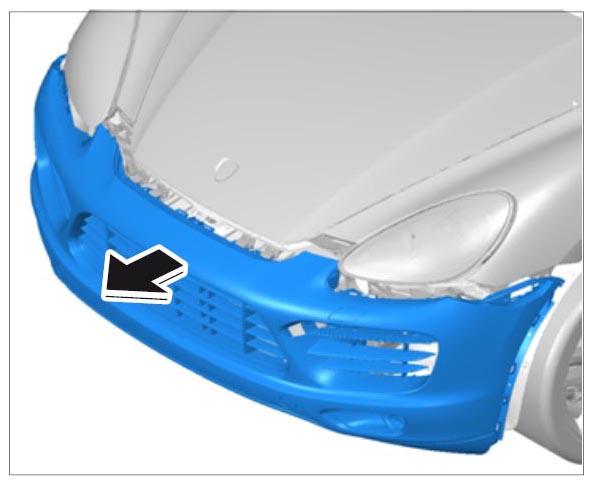

Take off front apron with the help of an assistant.
1. 6.1. Loosen the front apron and pull it forward slightly.

  Fig 6: Pulling Front Apron
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

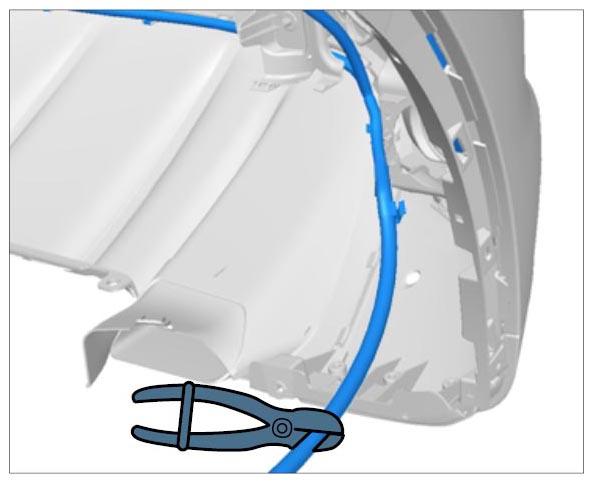

2. 6.2. Disconnect line for headlight washer system.
  1. 6.2.1. Press off line with a hose clamp.

    Fig 7: Disconnecting Line
    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

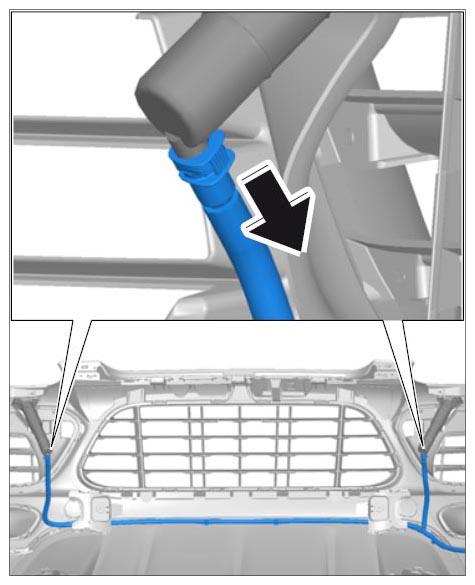

  2. 6.2.2. Unclip line from the front apron.
  3. 6.2.3. Pull line off the spray nozzle.

    Fig 8: Disconnecting Line From Spray Nozzle
    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 6.3. Remove trim panel fully.
