Installing Front Apron

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Fit the trim panel with the help of another person.

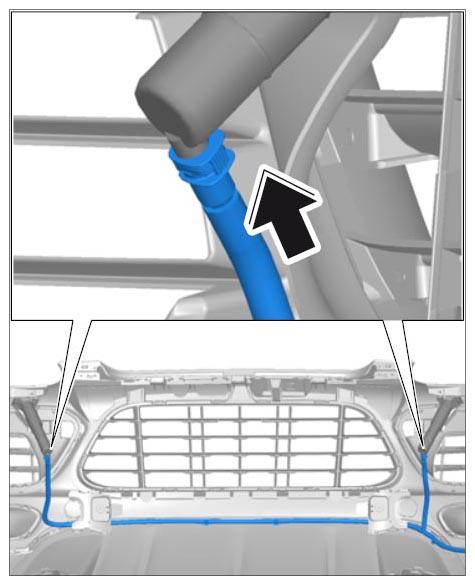

1. 1.1. Attach line for headlight washer system until it engages securely.

  Fig 1: Connecting Line To Spray Nozzle
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Clip line into the front apron.
3. 1.3. Loosen hose clamp on the hose.

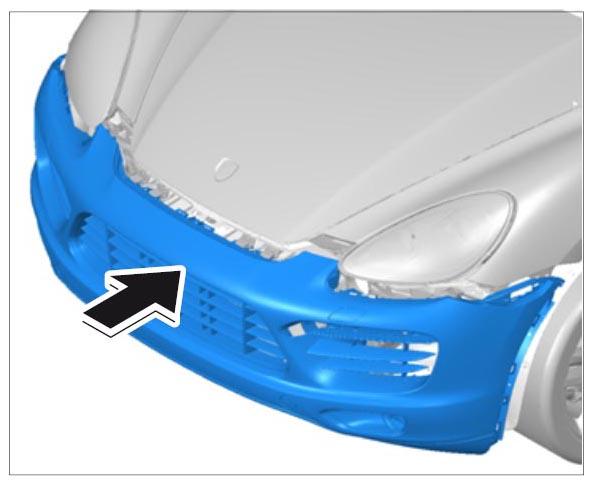

4. 1.4. Attach and position the front apron.

  Fig 2: Fitting Front Apron
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

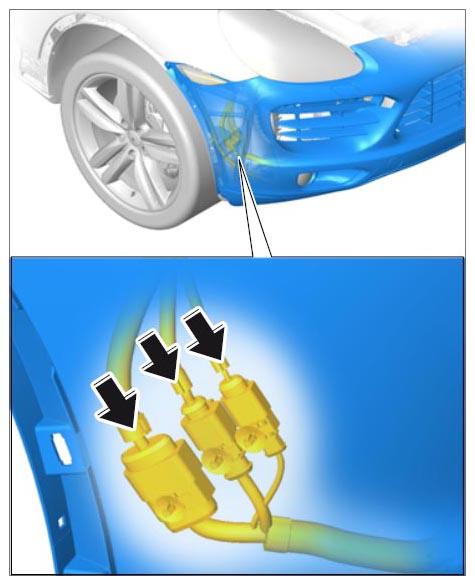

5. 1.5. Plug in connectors for wire harness at the right until they engage securely.

  Fig 3: Connecting Wire Harness
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

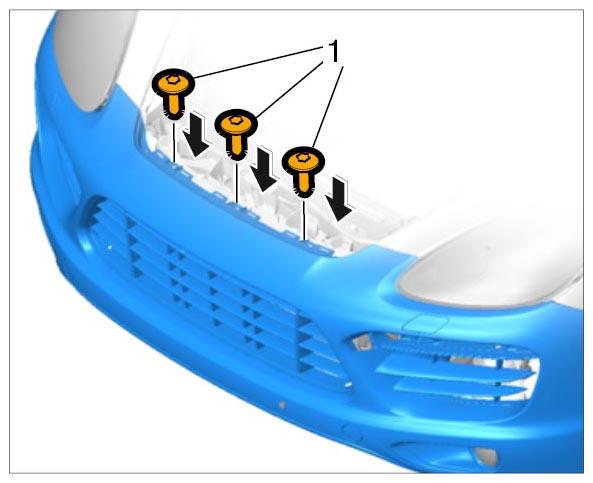

Screw in front fastening screws -1- at the top and tighten to → Tightening torque: 8 Nm (6 ftlb.)+/-1 Nm (+/-0.5 ftlb.) .

Fig 4: Securing Front Apron At Top
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push on fixing device.

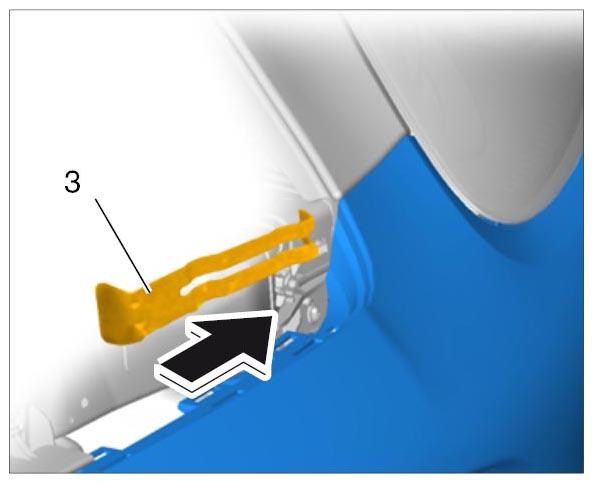

1. 3.1. Fit safety clips -3- at the left and right fully on the guide pins.

  Fig 5: Securing Front Apron
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

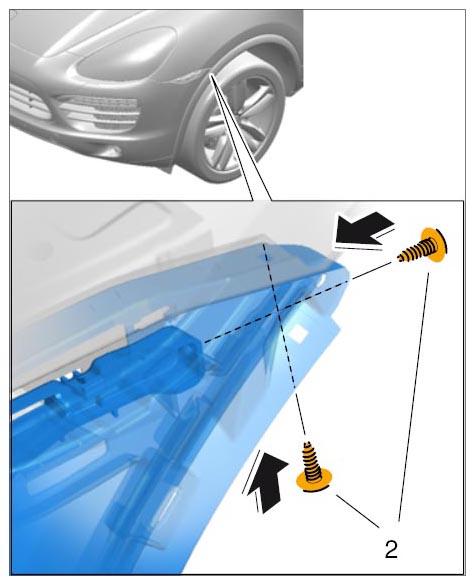

Screw in and tighten fastening screws -2- on the wing.

Fig 6: Securing Front Apron At Sides
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

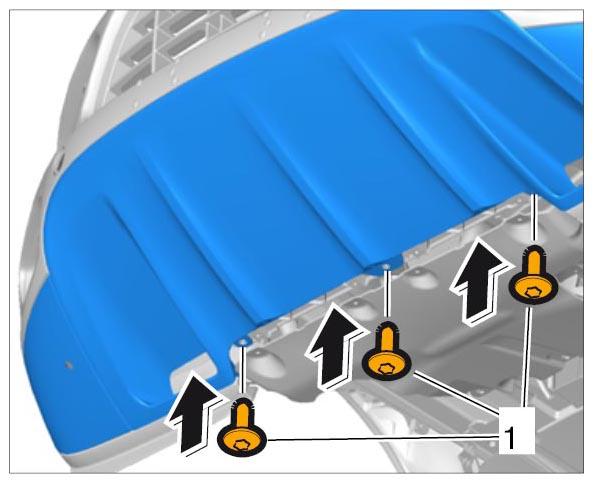

Screw in fastening screws -1- at the bottom of the front apron and tighten to → Tightening torque: 8 Nm (6 ftlb.)+/-1 Nm (+/-0.5 ftlb.) .

Fig 7: Securing Front Apron At Bottom
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
