Removing Front Door Panel

Information

• Some of the repair illustrations show only one side of the vehicle  .
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well  .

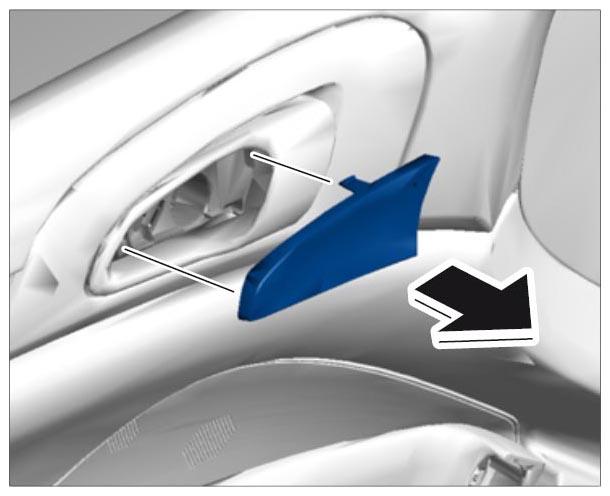

1. Pull door opener and unclip the cover on the door opener -1-  using a plastic wedge.
   Fig 1: Unclipping Cover For Door Opener

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

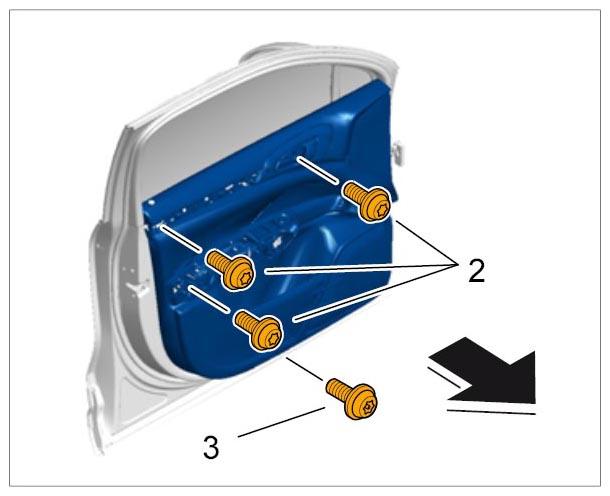

2. Unscrew and remove fastening screws -2 and 3 -  from the door panel.
   Fig 2: Releasing Door Panel

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

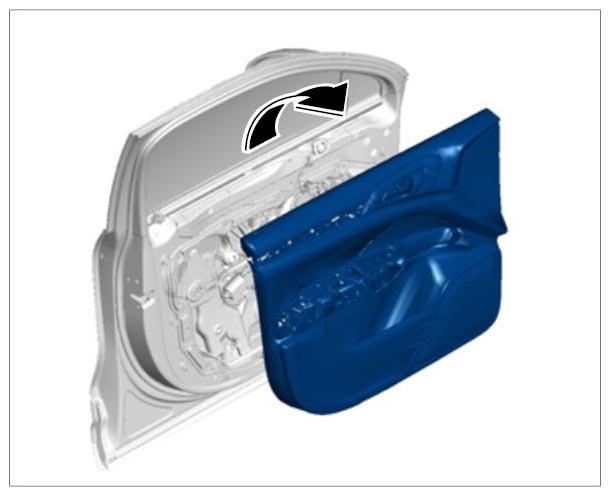

3. Unclip door panel at the bottom and swivel it out of the sealing channel at the top.
   Fig 3: Unclipping Door Panel

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

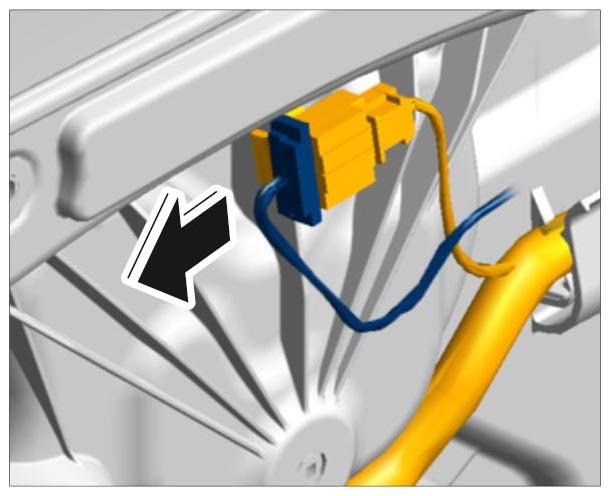

4. Release and disconnect electric plug connection on wiring harness for door.
   Fig 4: Disconnecting Electric Plug Connection For Wiring Harness

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

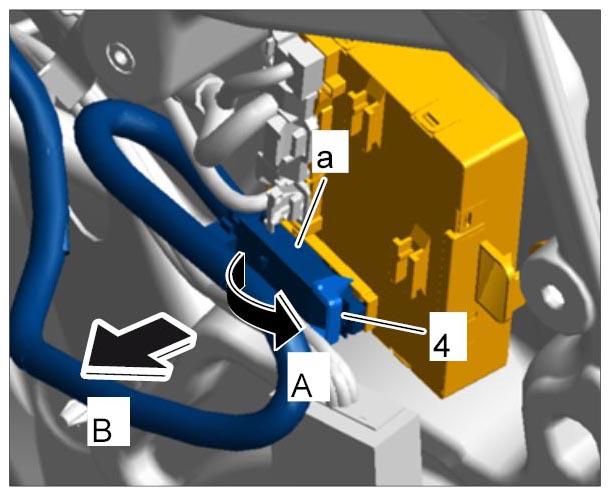

5. Disconnect electric plug connection from door control unit.
   Fig 5: Disconnecting Electric Plug Connection For Door Control Unit

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 5.1. Release electric plug connection from the door control unit -a-  .
   2. 5.2. Swivel securing clip -4-  forward by 90° -A-  and disconnect electric plug connection from the door control unit -B-  .

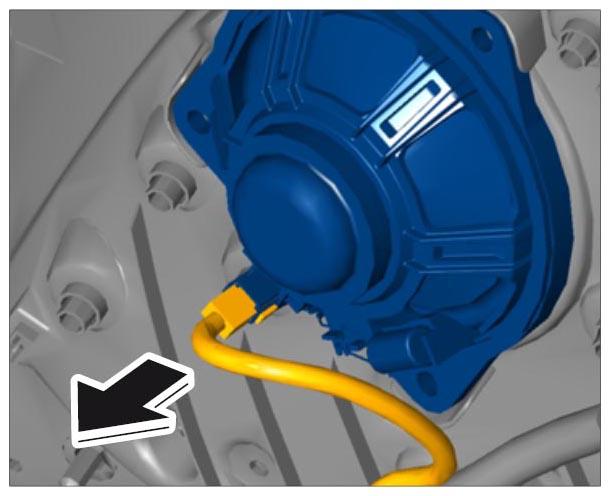

6. Disconnect electric plug connection from the mid-range loudspeaker.
   Fig 6: Disconnecting Electric Plug Connection For Mid-Range Loudspeaker

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

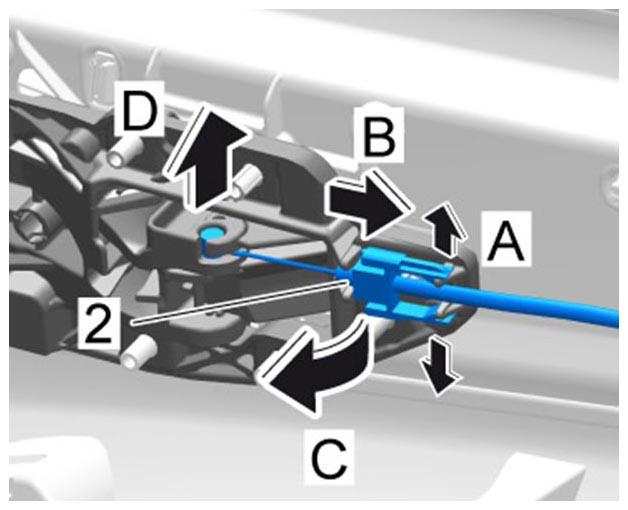

7. Disengage cable for door opener.
   Fig 7: Removing Cable For Door Opener

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 7.1. Spread locking lugs outwards -A-  .
   2. 7.2. Remove cable from the guide by pulling it to the rear -B-  .
   3. 7.3. Swivel cable forward -C-  until the driver at the front is free.
   4. 7.4. Remove driver from door opener.
8. Remove door panel.
