Removing Motor For Sunroof Blind

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

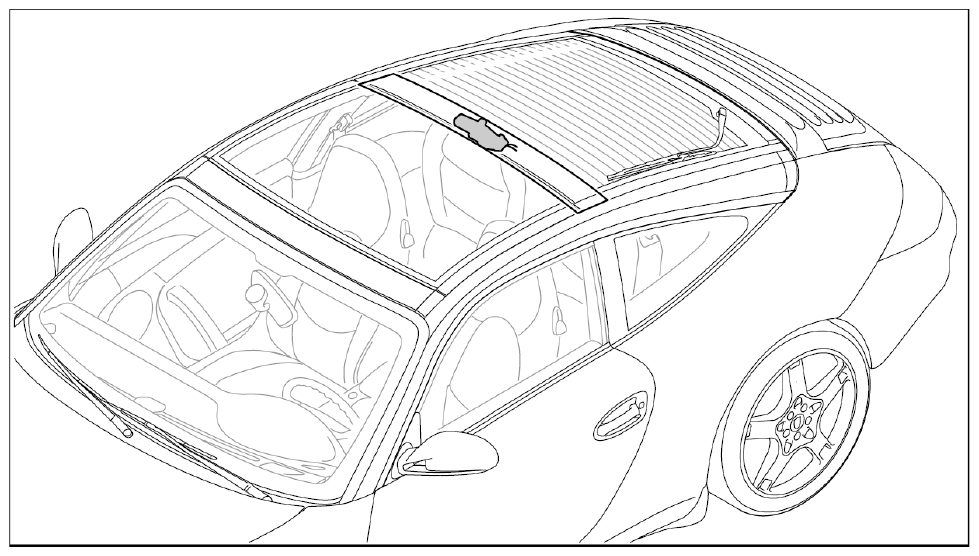

Fig 1: Identifying Motor For Sunroof Blind Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Close the sunroof.
Pull out ignition key.
The electric motor can be removed with the sun blind in any position.

Pull electric plug connection -3- apart.

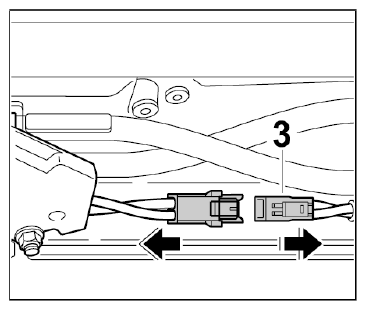

Fig 2: Disconnecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws -4, 5- and fastening nuts -6- for the electric motor.

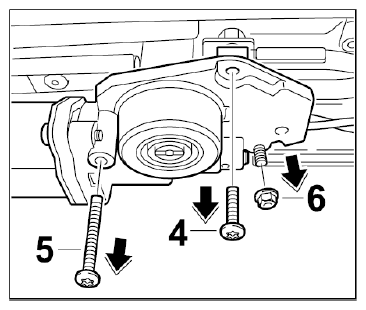

Fig 3: Removing Fastening Screws And Nuts On Electric Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull electric motor -1- out in -direction of arrow- .

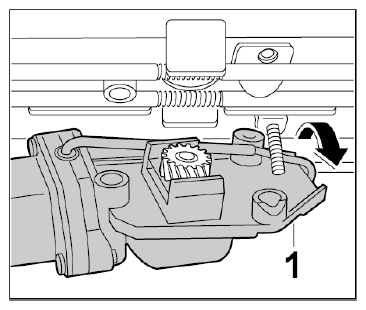

Fig 4: Removing Electric Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
