Installing Motor For Sunroof Blind

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Pull out ignition key.
Before installing the electric motor again, visually check the drive shafts for damage.
If the drive shafts have been severely damaged as a result of metallic abrasion, the drive shafts must be replaced as described below. >> → 602837 DISASSEMBLING AND ASSEMBLING FRAME FOR SUNROOF COVER

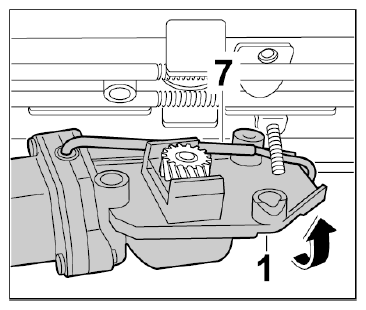

Insert electric motor between the shafts in -direction of arrow- . Pay attention to line routing -7- .

Fig 1: Installing Electric Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

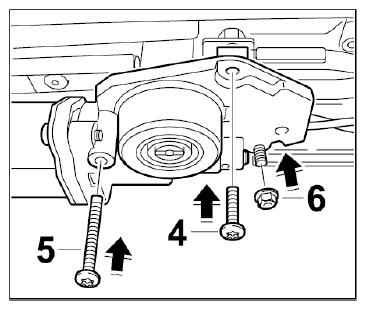

Tighten fastening screws -4, 5- (observe screw length) and fastening nuts -6- . → Tightening torque: 5 Nm (3.5 ftlb.) → Tightening torque: 5 Nm (3.5 ftlb.)

Fig 2: Securing Electric Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect electric plug connection -3- fully.

Fig 3: Connecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
