Removing Sunroof Control Unit

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

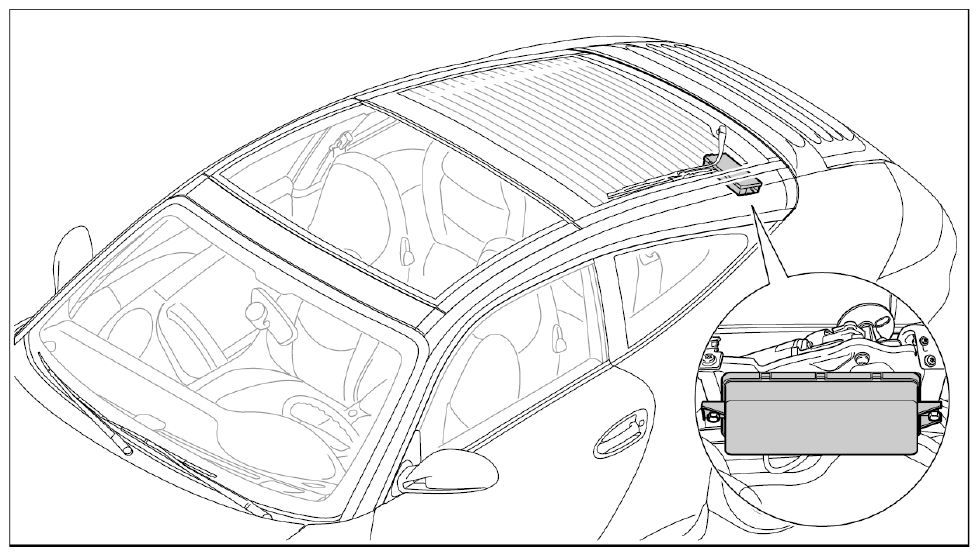

Fig 1: Identifying Sunroof Control Unit Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Pull out ignition key.

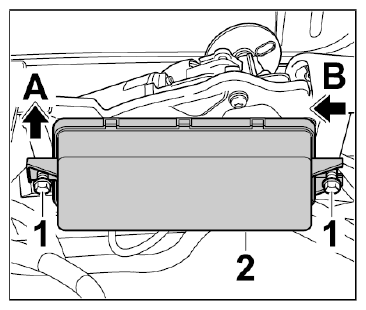

Unscrew the two fastening screws -1- and move control unit -2- first in direction -A- and then in direction -B- and set it down.

Fig 2: Loosening Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

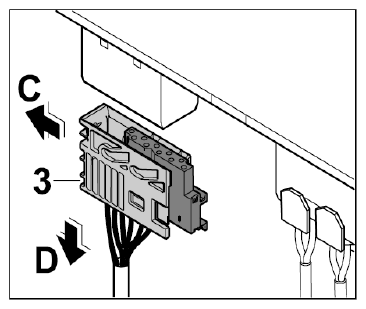

Move the slide on the electric connector in direction of arrow -C- and pull off connector -3- in direction -D- .

Fig 3: Removing Connectors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

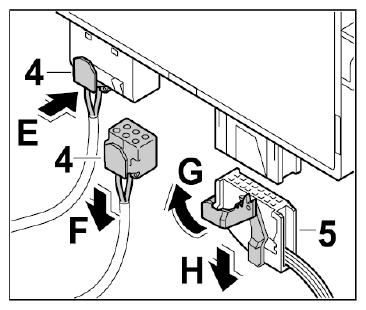

Press the two connectors -4- together -E- and pull them off the control unit -F- . Fold locking lever -G- over and pull connector -5- off the control unit -H- .

Fig 4: Removing Connectors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
