Installing Sunroof Control Unit

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Pull out ignition key.

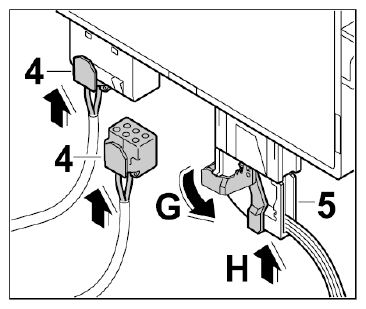

Plug in connector -5- and fold locking lever over -G- until it engages. Plug in the two connectors -4- until they engage securely.

Fig 1: Plugging Connectors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

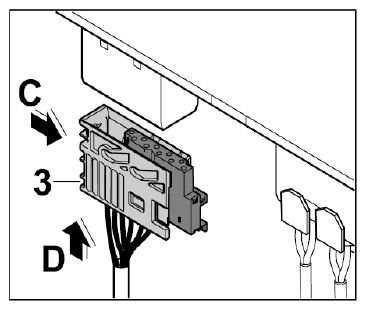

Plug in connector -3- and close the slide in direction -C- .

Fig 2: Plugging Connectors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

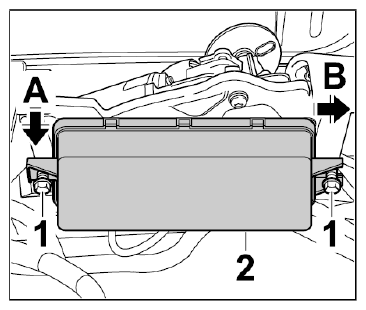

Push in the control unit -2- first in direction -B- and then in direction -A- . Tighten fastening screws -1- . → Tightening torque: 5.6 Nm (4.0 ftlb.)

Fig 3: Securing Sunroof Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
