Removing Metal Guide Tube For Holder Unit

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Metal Guide Tube For Holder Unit Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

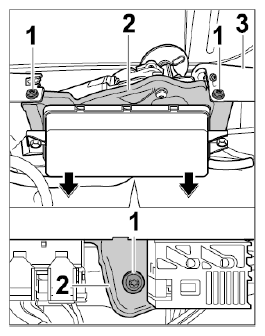

Remove holder for sliding roof control unit.
1. 1.1. Unscrew fastening screws -1- on holder for sliding roof -2- .
2. 1.2. Remove holder for sliding roof control unit -2- from roof assembly -3- and lay to one side -arrows-

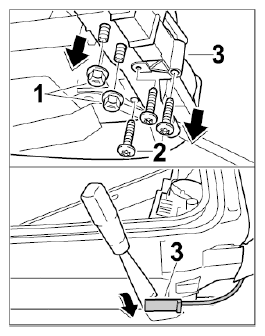

Remove water drainage bracket at the rear left and right.
1. 2.1. Unscrew fastening nuts -1- and fastening screws -2- on the water drain bracket -3- (-arrows- ).
  Information

  The water drainage bracket will be irreparably damaged during removal and must be replaced.
2. 2.2. Loosen water drain bracket -3- all the way around with a metal spatula -arrow- .

  Fig 3: Removing Rear Water Drainage Bracket
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Information

To make removal easier, pull back the metal guide tubes first to the left and then to the right.

Information

During removal, the metal guide tubes must not be kinked or bent.

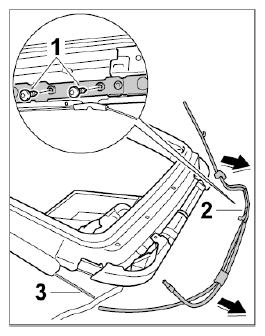

Remove metal guide tubes.
1. 3.1. Undo fastening screws -1- .
2. 3.2. Pull out metal guide tubes -2- in -arrowrichtung- from the drive shafts -3- .
Fig 4: Removing Metal Guide Tubes
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
