Installing Metal Guide Tube For Holder Unit

Information

To make installation easier, slide the metal guide tubes first to the right and then to the left over the drive shafts.

Information

During installation, the metal guide tubes must not be kinked or bent.

1. Install metal guide tube.
   1. 1.1. Slide metal guide tubes -2-  over the drive shafts in -direction of arrow-  .
   2. 1.2. Secure metal guide tubes -2-  with the fastening screws -1-  . → Tightening torque: 5.5 Nm (4.0 ftlb.)

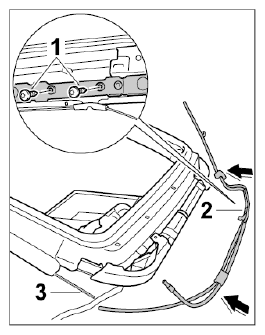

   Fig 1: Installing Metal Guide Tube

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Install water drainage bracket at the rear left and right.
   1. 2.1. Apply Klebt und Dichtet body sealant  to the inside of the water drainage bracket at the rear left and right. Maintain the application depth -X and Y-  . → Application depth: 4 mm → Application depth: 6 mm

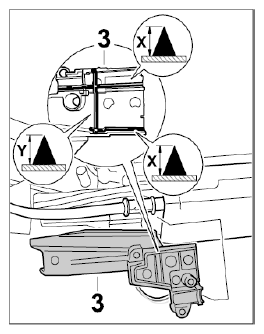

   Fig 2: Preparing Water Drainage Bracket At Rear Left And Right (Installation)
   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 2.2. Position water drainage bracket -3-  at the rear left and right on the roof assembly and secure with the fastening nuts -1-  and fastening screws -2-  . → Tightening torque: 3 Nm (2 ftlb.) → Tightening torque: 1.4 Nm (1.0 ftlb.)

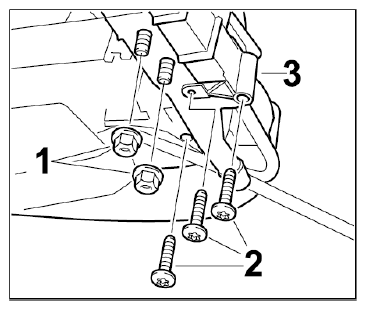

      Fig 3: Installing Water Drainage Bracket At Rear Left And Right

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Install holder for sunroof control unit.
   1. 3.1. Position holder for sunroof control unit -2-  on the roof assembly -3-  (-arrows-  ) and secure with the fastening screws -1-  . → Tightening torque: 12 Nm (9 ftlb.)

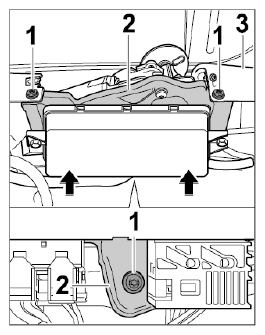

   Fig 4: Installing Holder For Sunroof Control Unit

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
