Disassembling Frame For Sliding Roof Cover

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

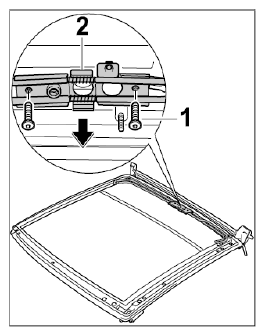

Unscrew fastening screws -1- on the drive tubing (metal guide tubes) -2- (-arrow- ).

Fig 1: Loosening Drive Tubing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

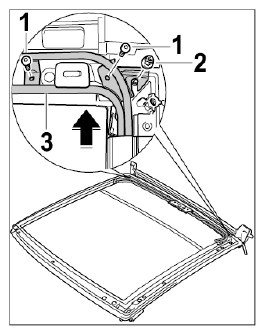

Unscrew fastening screws -1- and fastening nuts ↓-2- at the left and right on the drive tubing -3- and pull tubing out slightly in -direction of arrow- .

Fig 2: Loosening Drive Tubing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

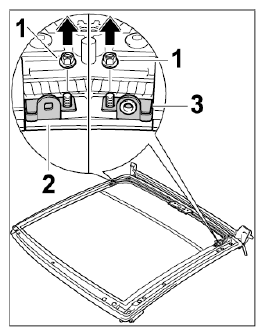

Unscrew fastening nuts -1- on the blind shaft mount at the right -2- and left -3- (-arrow- ).

Fig 3: Removing Blind Shaft Mount
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

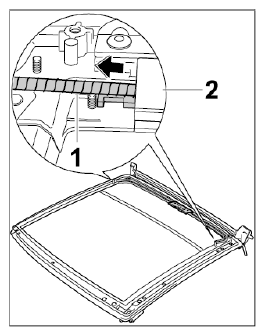

Pull drive shaft -1- at the left and right in -direction of arrow- to remove it from the frame for the sliding roof cover -2- .

Fig 4: Removing Drive Shaft
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

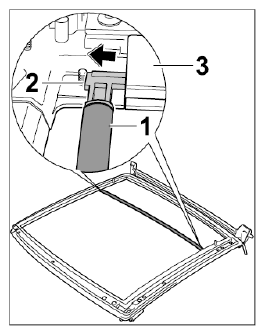

Pull support bow -1- and bracket -2- out of the frame for the sliding roof cover -3- in -direction of arrow- .

Fig 5: Removing Support Bow
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Drill out rivets -1- on the profile strip -2- .

Fig 6: Removing Profile Strip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull seal -1- up all the way around out of the groove in the frame for the sliding roof cover -2- (-arrow- ).

Fig 7: Removing Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
