Removing Frame For Sliding Roof Cover

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

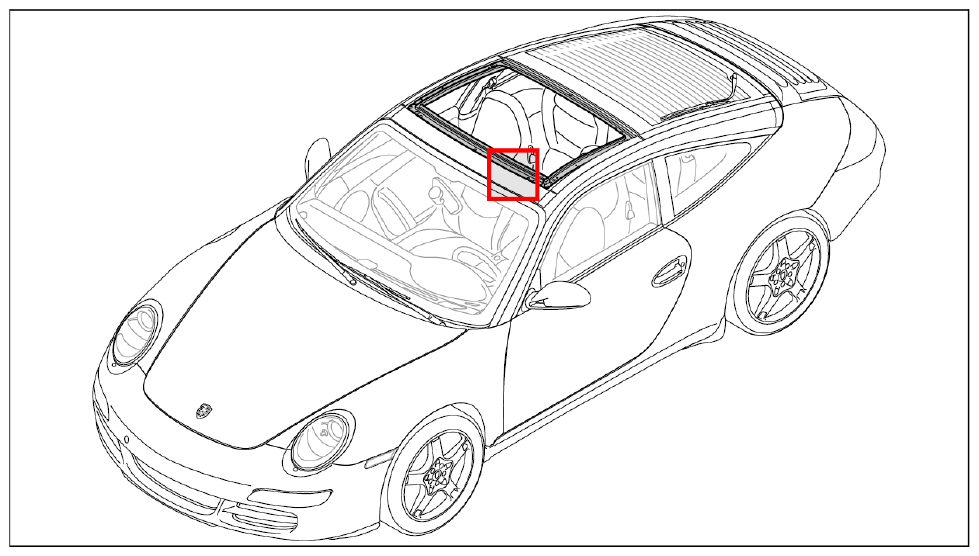

Fig 1: Identifying Sliding Roof Cover Frame Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

To remove the frame for the sliding roof cover, the mounts must be moved into horizontal position.

To do this, actuate the rocker switch or sunroof emergency release. → Information

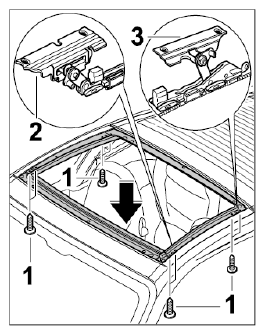

Unscrew fastening screws -1- from the mounts at the front -2- and rear -3- .

Fig 2: Loosening Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

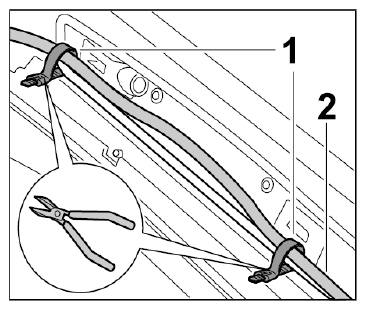

Cut tie-wraps -1- on the wire harness -2- .

Fig 3: Cutting Tie-Wraps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

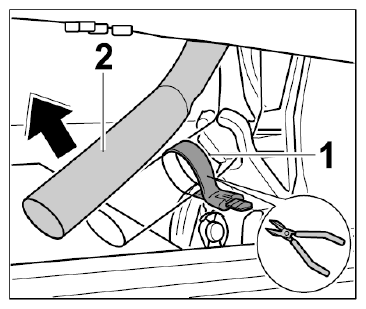

Cut tie-wraps -1- on the water drain hose -2- at the right and left. Pull the water drain hose out of the holder.

Fig 4: Releasing Water Drain Hose
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

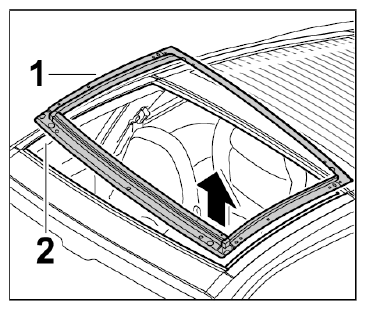

Raise the frame for the sliding roof cover -1- at the front and guide it upwards out of the roof assembly frame -2- - first pull the right side of the frame and then the left side up and out.

Fig 5: Removing Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
