Removing Guide For Fabric Lining

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

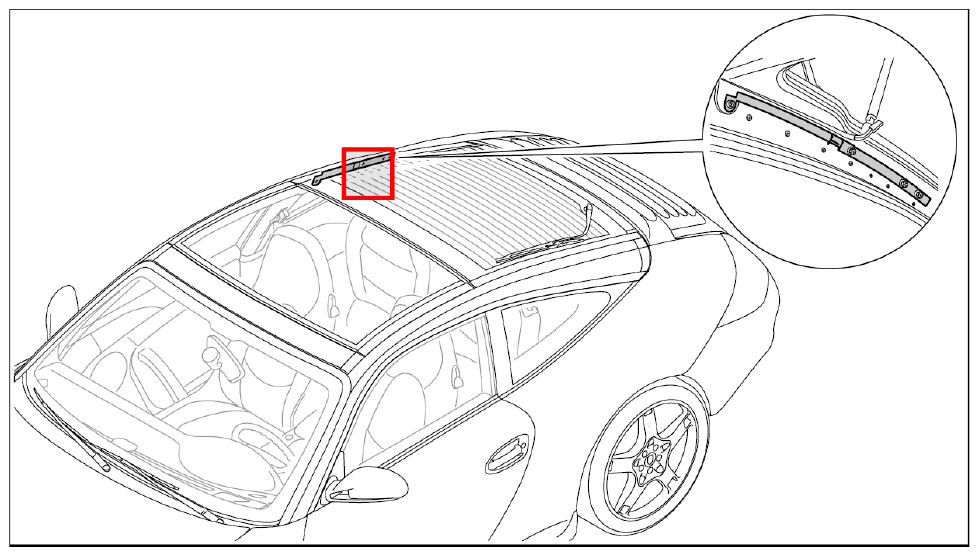

Fig 1: Identifying Fabric Lining Guide Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew fastening nuts -1- and remove guide for fabric lining -2- in -direction of arrow- .

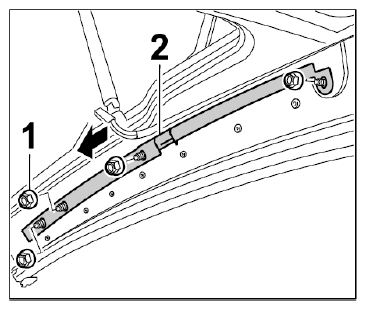

Fig 2: Removing Fabric Lining Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull rear window heating wire -1- out of the guide for fabric lining -2- in -direction of arrow- .

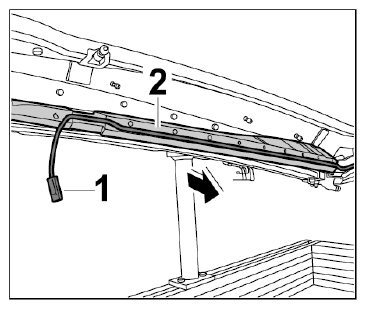

Fig 3: Pulling Out Rear Window Heating Wire
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
