Installing Guide For Fabric Lining

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Press rear window heating wire -1- into the guide for fabric lining -2- in -direction of arrow- . Start at the white marking -arrow- on the wire when pressing in the rear window heating wire -1- .

Fig 1: Pressing Rear Window Heating Wire
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

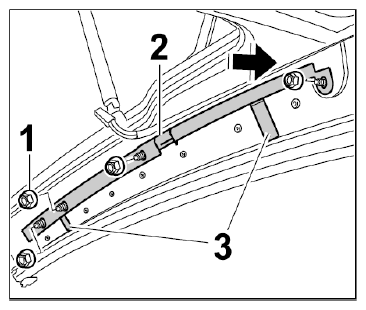

Position guide for fabric lining -2- on the roof assembly and fit fastening nuts -1- .
Set the relative position of the guide for fabric lining and the roof assembly guide using the distance gauge → -3- .
→ Gap dimension: 60 mm

Fig 2: Installing Fabric Lining Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten fastening nuts -1- . → Tightening torque: 10 Nm (7.5 ftlb.)
