Disassembling Roof Assembly Frame

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

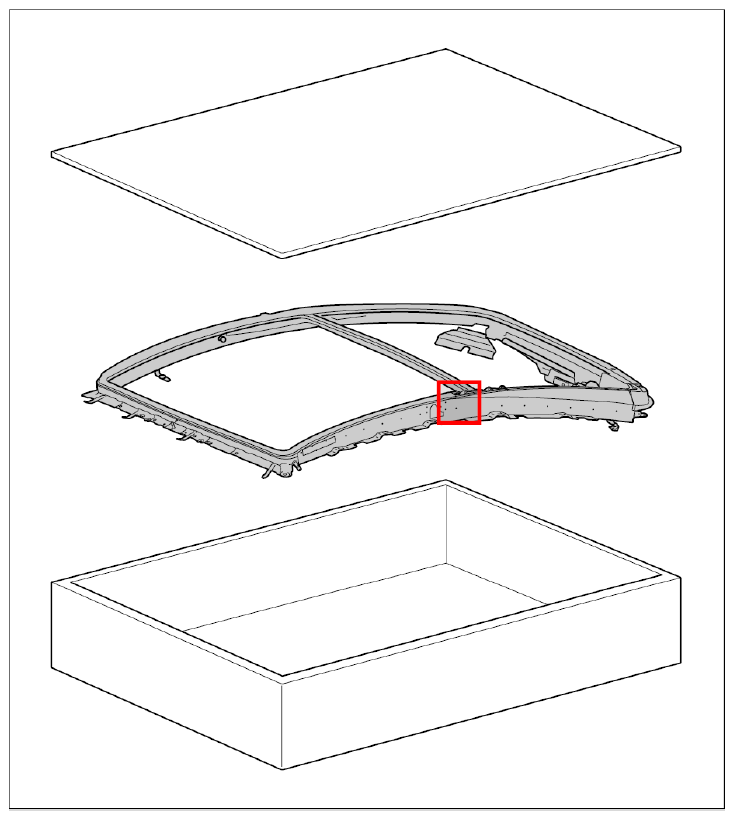

Fig 1: Overview Of Roof Assembly Frame

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

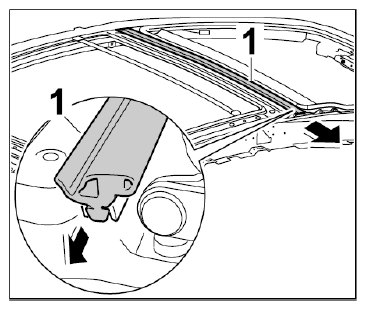

Pull seal for the center joint -1- out of the roof assembly frame in -direction of arrow- .

Fig 2: Removing Center Joint Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

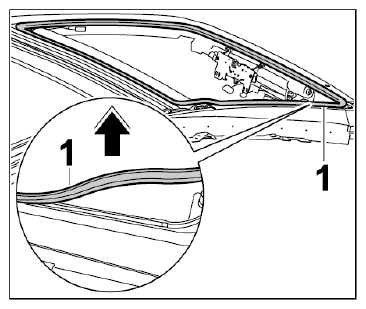

Pull seal for rear window cover -1- off the roof assembly frame flange all the way around in -direction of arrow- .

Fig 3: Removing Rear Window Cover Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

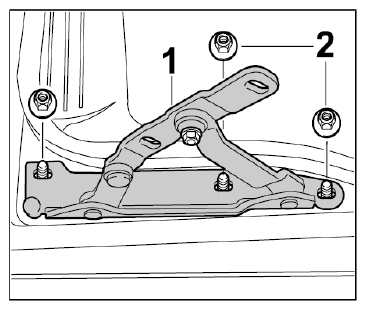

Unscrew fastening nuts -2- and remove lid hinge -1- .

Fig 4: Removing Lid Hinge
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

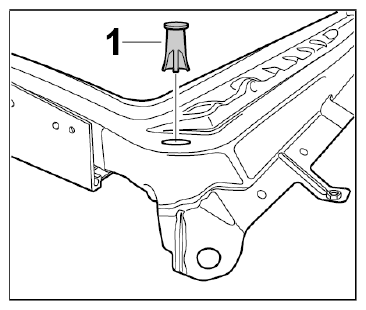

Press rubber grommet for water drain -1- at the front left and right out of the roof assembly frame.

Fig 5: Removing Water Drain Rubber Grommet
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
